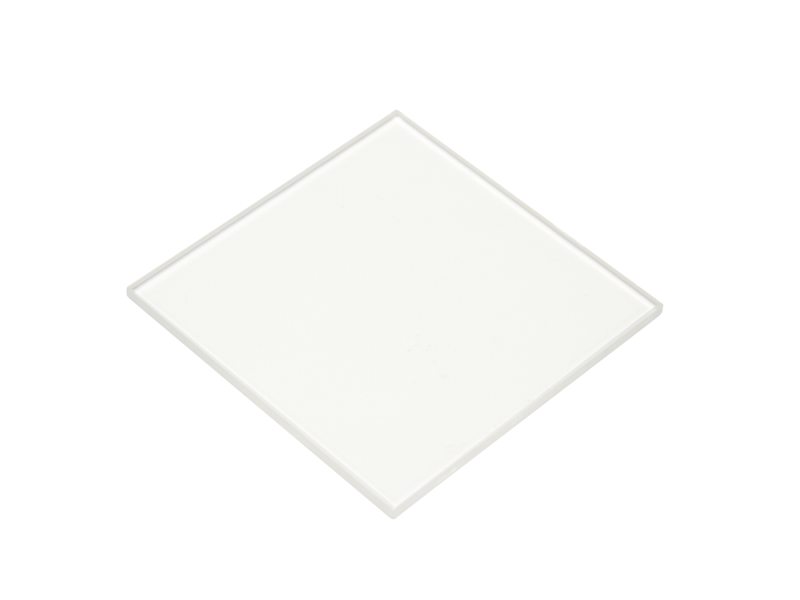

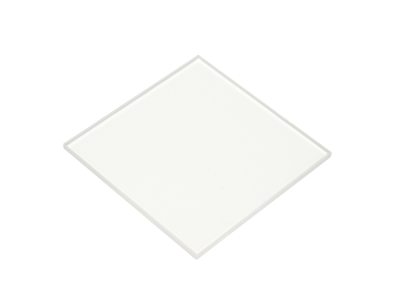

Longpass Filter, Colored Glass, 50.8 x 50.8 mm, 285 nm Cut-on, WG.280 Glass

Colored Glass Absorptive Longpass Filters

The FSQ-WG280 Colored Glass Longpass Filter is a 50.8 x 50.8 mm 285 nm cut-on longpass filter made of WG.280 colored glass. These optical filters are precision polished for demanding research or OEM applications.

Specifications

Technical Specs

Type
Colored Glass Longpass Filter
Optic Size
50.8 x 50.8 mm
Cut-on Wavelength
285 nm
Angle of Incidence
0°
Material
Schott WG280 or equivalent
Thickness Tolerance
±0.1 mm
Surface Flatness
≤4λ at 632.8 nm over the clear aperture
Thickness
2.0 to 3.0 mm, typical
Surface Quality
60-40 scratch-dig

Size Tolerance
±0.3 mm
Clear Aperture
central ≥ 80% of area
Chamfers
Up to 1 mm face width
Cleaning
See How to Clean Optics
Damage Threshold
30 W/cm² CW, Typical
Wedge
≤3 arc min
Chamfers Angle Tolerance
45° ±15°

Type
Colored Glass Longpass Filter
Optic Size
50.8 x 50.8 mm
Cut-on Wavelength
285 nm
Angle of Incidence
0°
Material
Schott WG280 or equivalent
Thickness Tolerance
±0.1 mm
Surface Flatness
≤4λ at 632.8 nm over the clear aperture
Thickness
2.0 to 3.0 mm, typical
Surface Quality
60-40 scratch-dig

Size Tolerance
±0.3 mm
Clear Aperture
central ≥ 80% of area
Chamfers
Up to 1 mm face width
Cleaning
See How to Clean Optics
Damage Threshold
30 W/cm² CW, Typical
Wedge
≤3 arc min
Chamfers Angle Tolerance
45° ±15°

Resources & Downloads

2D Product Drawings

COLOREDG-S(61 kB, PDF)

Other

FSQ-WG280 RoHS Certificate(703 kB, PDF)

Related Products

Similar

	Compare	Description	Compatibility	Drawings, CAD & Specs	Avail.	Price

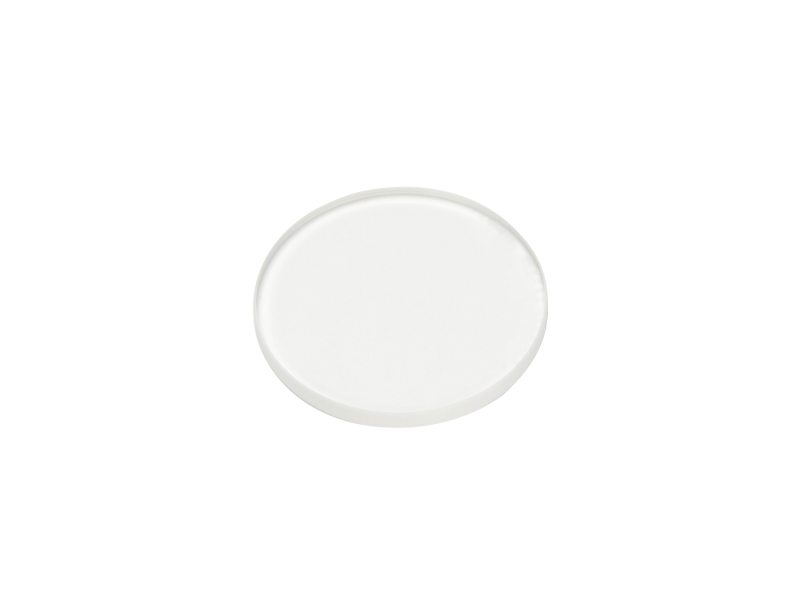

		FSR-WG280Longpass Filter, Colored Glass, 25.4 mm, 285 nm Cut-on, WG280 Glass	UNIVERSAL		In Stock	$82
		FSQ-WG305Longpass Filter, Colored Glass, 50.8 x 50.8 mm, 309 nm Cut-on, WG.305 Glass	UNIVERSAL		In Stock	$90

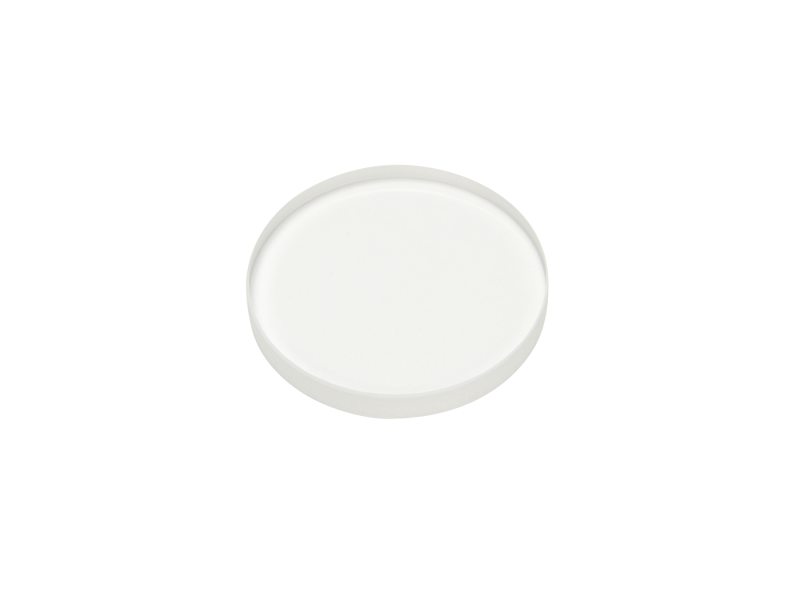

		FSR-WG320Longpass Filter, Colored Glass, 25.4 mm, 324 nm Cut-on, WG320 Glass	UNIVERSAL		In Stock	$82

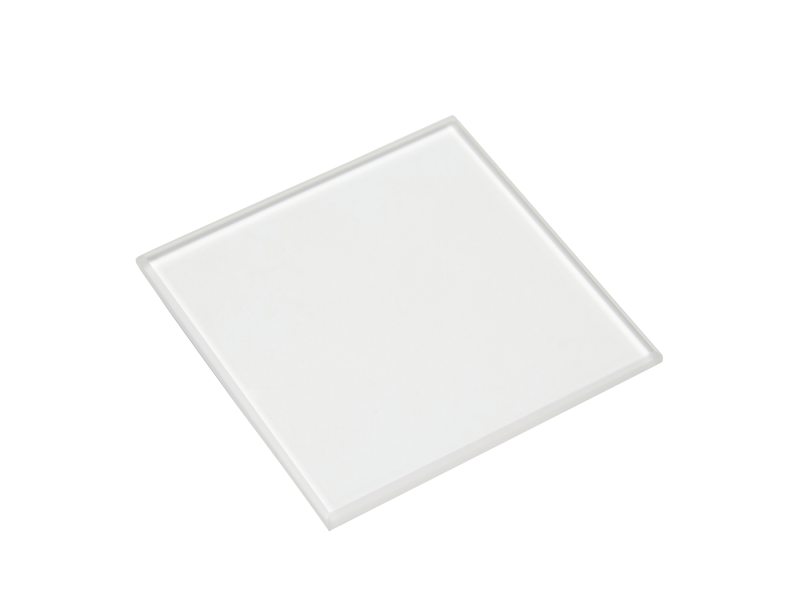

		FSQ-WG295Longpass Filter, Colored Glass, 50.8 x 50.8 mm, 299 nm Cut-on, WG.295 Glass	UNIVERSAL		Contact Us	$93
