Longpass Filter, Colored Glass, 12.7 mm, 550 nm Cut-On, OG550 Glass
Longpass Filter, Colored Glass, 12.7 mm, 550 nm Cut-On, OG550 Glass
Model: FR-OG550
In Stock
Product Series Overview

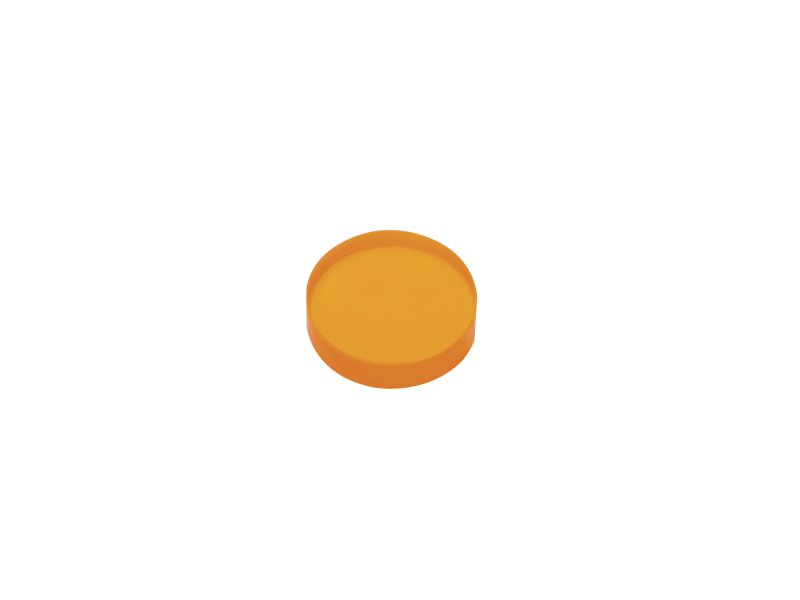

Colored Glass Absorptive Longpass FiltersThe FR-OG550 Colored Glass Longpass Filter is a 12.7 mm diameter 550 nm cut-on optical filter made of Schott OG550 filter glass. This long-wave pass edge filter is precision polished for demanding research or OEM applications.
Specifications
- TypeColored Glass Longpass Filter
- Optic SizeØ12.7 mm
- Cut-on Wavelength550 nm
- Angle of Incidence0°
- MaterialSchott OG550 or equivalent
- Surface Quality60-40 scratch-dig
- Surface Flatness≤1λ at 632.8 nm over the clear aperture
- Thickness3 mm
- Thickness Tolerance±0.1 mm
- Size Tolerance±0.3 mm
- Clear Aperturecentral ≥ 80% of diameter
- Wedge≤3 arc min
- Damage Threshold30 W/cm2 CW, Typical
- ChamfersUp to 1 mm face width
- Chamfers Angle Tolerance45° ±15°
- Cleaning
Resources & Downloads
Other
FR-OG550_ROHS2-2021_w_ex.pdf(279.5 kB, PDF)
2D Product Drawings
12.7 mm Diameter FR Series Drawing(100.7 kB, PDF)
