Optical Filter Mount, Stackable, 0.5 in. Diameter Optics

Model: FH-05R

$41

In Stock

Compare

Add to List

Product Series Overview

Stackable Retaining Ring Filter Mounts

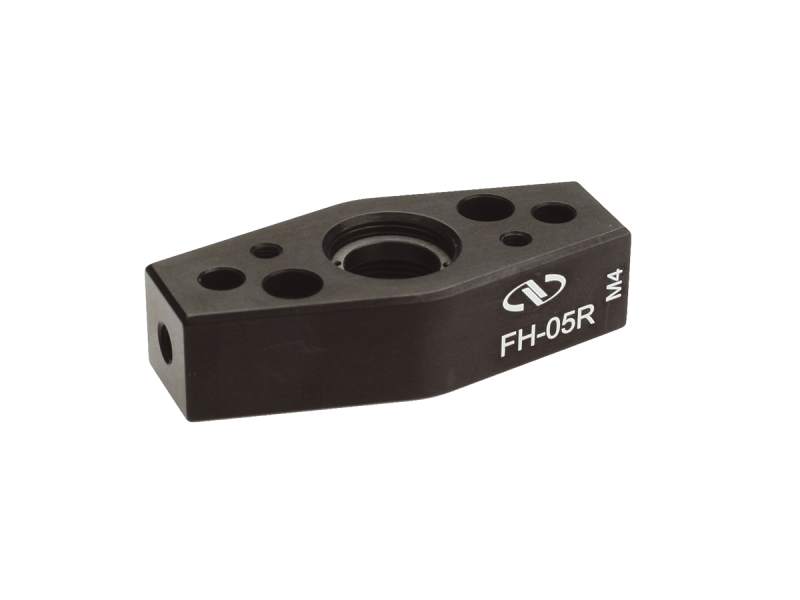

The FH-05R Stackable Filter Holder offers a convenient, economical system for mounting 0.5 inch (12.7 mm) diameter circular filters. The mounting system consists of a threaded holder with a Delrin retaining ring to hold the optic firmly but gently. In addition, the FH-05R has a set of M3 threaded and clearance holes located on the upper and lower face of the holder for ease in stacking. Two M3 Screws are included with each mount. The holder incorporates 8-32 and M4 threaded mounting holes for post mounting on English and Metric SP and MSP Series Posts, as well as PS Series Pedestal Posts. The front of the holder also has two clearance holes, which can be used for face mounting or used with a threaded rod (not supplied) to form low-cost optical systems.

Specifications

Technical Specs

Filter Shape

Round
Filter Diameter

12.7 mm
Maximum Thickness

8.8 mm
Number of Filters

1
Retaining Ring

MLH-0.5-RR
Retaining Ring Thread

0.546-32

Mechanism

Retaining Ring
Mounting Threads

8-32 and M4
Material

Anodized Aluminum
Filter Size Circular or Square

12.7 mm

Filter Shape

Round
Filter Diameter

12.7 mm
Maximum Thickness

8.8 mm
Number of Filters

1
Retaining Ring

MLH-0.5-RR
Retaining Ring Thread

0.546-32

Mechanism

Retaining Ring
Mounting Threads

8-32 and M4
Material

Anodized Aluminum
Filter Size Circular or Square

12.7 mm

Resources & Downloads

2D / 3D CAD Software

Download CAD Files

Drawings And Cad

FH-XR-S (115.3 kB, PDF)

Other

FH-05R RoHS Certificate (279.3 kB, PDF)
FH-05R_RoHS2021.pdf (684.6 kB, PDF)

Related Products

Accessories

Description	Compatibility	Avail.	Price
BB-M Optical Beam Block, Tool Holder, Magnetic-Base, Medium	UNIVERSAL	In Stock	$35
SK-25A Black Oxide Screw Kit, 1/4-20, Assortment, Qty 261	UNIVERSAL	In Stock	$72
BDK-1 Ball Driver Allen Wrench Set, Includes 9 Ball drivers	IMPERIAL	In Stock	$38
AW-1 Adaptor Washers, 1/4-20 (M6) to 8-32 (M4), Qty 10	UNIVERSAL	In Stock	$19.40
SK-TA Thread Adaptor Set, English	UNIVERSAL	In Stock	$320

Similar

Description	Compatibility	Avail.	Price
FH-1S Optical Filter Holder, Drop-in, 25.4 mm Optics	UNIVERSAL	In Stock	$84
M-PPL17 Thick Optical Filter Holder, Thumbscrew Clamp, Up To 12 mm Thick	UNIVERSAL	In Stock	$147

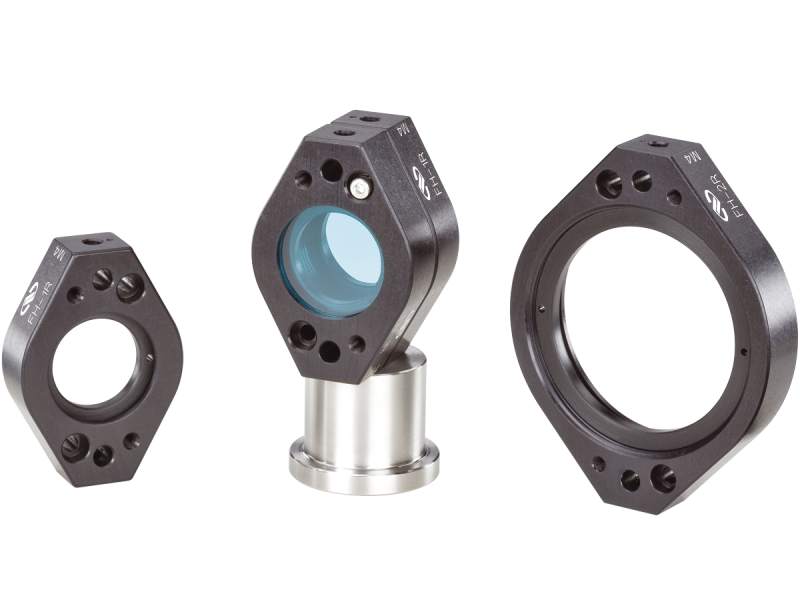

FH-1R Optical Filter Mount, Stackable, 1.0 in. Diameter Optics	UNIVERSAL	In Stock	$41
FH-2S Optical Filter Holder, Drop-in, 50.8 mm Optics	UNIVERSAL	In Stock	$100
FH-2R Optical Filter Mount, Stackable, 2.0 in. Diameter Optics	UNIVERSAL	In Stock	$54

Compatible

Description	Compatibility	Avail.	Price
PS-2 Optical Pedestal, 2.0 in. Height, 1.0 in. Diameter, 8-32 Thread	IMPERIAL	In Stock	$30
VPHV-2-F Optical Post Holder, Composite, Clamping Fork, 2.0 in. Height	UNIVERSAL	Contact Us	$17.90
SP-2 Optical Post, 2.0 in. Height, 0.5 in. Diameter, 8-32 and 1/4-20 Thread	IMPERIAL	In Stock	$6
VPH-2 Optical Post Holder, No Slip, 2.0 in. Height, 0.5 in. Posts, 1/4-20	IMPERIAL	In Stock	$17
