Multimode Patch Cord, Step Index, High Temperature, F-MCC-T,, 1 m, FC.

The F-MCC-T-1FC is a 1 meter length high temperature, multi-mode step index fiber patch cord with FC connectors. A 200 μm core diameter with a bonded hard polymer 220 μm cladding supports 250-1100 nm operation. This high-temperature, all-silica, high OH-sensor grade fiber patch cord features a polyimide buffer coating. The fiber's upper operating range is extended to +375°C, FC connector is up to +80°C, while its chemical and abrasion resistance is increased. Due to its high temperature applications, the cable is not jacketed.

Custom Multimode Patch Cables

Use Model Number F-PATCH-CUSTOM to configure a custom fiber-optic patch cord using these fibers. You can specify the fiber type, length, jacketing, and input and output connectors.

Available Off-the-shelf

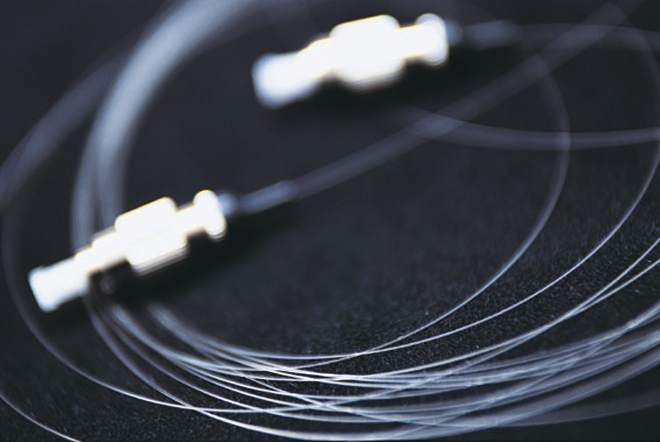

We carry many standard fiber optic patch cables available off-the-shelf for operating wavelengths from 250 to 2100 nm. The standard patch cables are available in several different lengths and connector types. These fibers have an inner jacket surrounded by a layer of Aramid yarn for extra protection. A PVC cable jacket provides additional environmental protection. If there is not a standard patch cable available for your application, please try our custom patch cable configurator:F-PATCH-CUSTOM .

Excellent Performance

Our Standard Patch Cable exhibit low attenuation while utilizing either step-index and graded-index designs and have a uniform core refractive index and a matched-clad profile.

Specifications

Technical Specs

Index Profile
Step
Fiber Type
Multimode
Core Diameter
200 ±5 µm
Cladding Diameter
220 ±5 µm
Coating Diameter
250 ±5 µm
Fiber Connector
FC/UPC
Fiber Length
1 m

Operating Wavelength
250-1100 nm
Bandwidth
25 MHz/km
Bend Radius 60 min./20 yrs.
17/28 mm
Numerical Aperture
0.22
Proof Test
100 kpsi

Index Profile
Step
Fiber Type
Multimode
Core Diameter
200 ±5 µm
Cladding Diameter
220 ±5 µm
Coating Diameter
250 ±5 µm
Fiber Connector
FC/UPC
Fiber Length
1 m

Operating Wavelength
250-1100 nm
Bandwidth
25 MHz/km
Bend Radius 60 min./20 yrs.
17/28 mm
Numerical Aperture
0.22
Proof Test
100 kpsi
