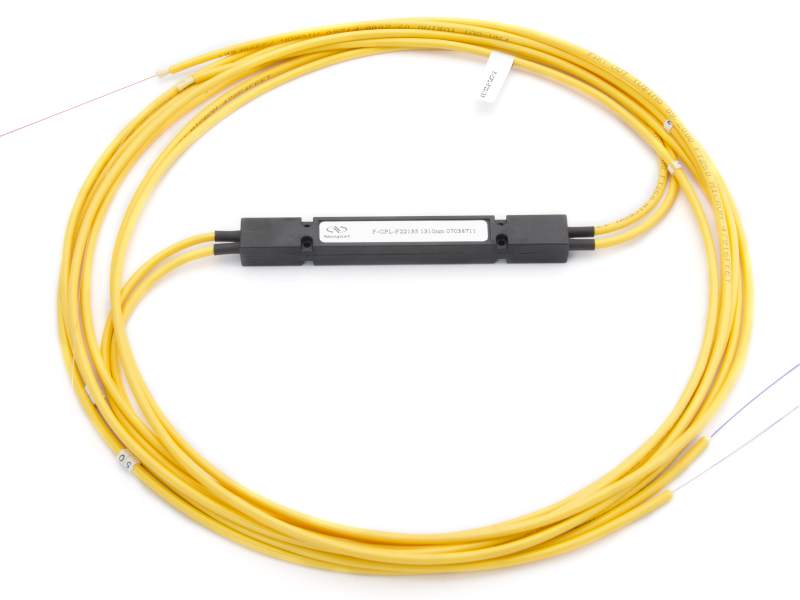

F-CPL-B22351-FCAPC Optical Fiber Coupler

Optical Fiber Coupler, Broadband, 2 x 2, 10/90, 1310/1550 nm, FC/APC

Model: F-CPL-B22351-FCAPC

$245

In Stock

Compare

Add to List

Product Series Overview

1x2 and 2x2 Singlemode Fiber Couplers

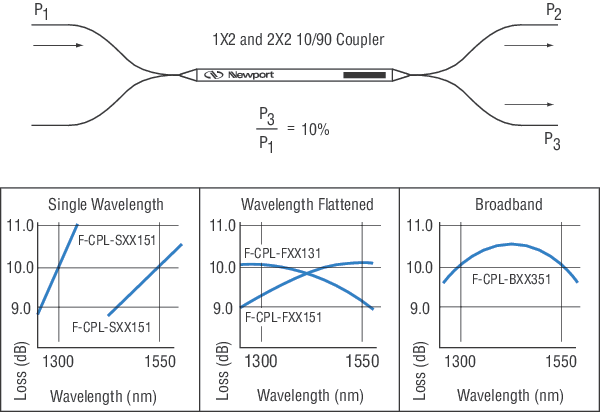

The F-CPL-B22351-FCAPC Broadband Coupler is operational over both the 1310 and 1550 nm windows. This 2x2 coupler has a 10/90 (10%) coupling ratio. It has FC/APC connectors. It can be used with the 918D-IS-1 fiber optic detector and 22494-01S FC connector (which is included with the 918D-IS-1). See the Related Products tab for more information.

Specifications

Technical Specs

Type

2x2 Broadband Coupler
Fiber Type

Singlemode
Coupling Ratio

10%/90%
Fiber Connector

FC/APC
Operating Wavelength

1310/1550 nm
Maximum Insertion Loss

0.65 dB
Return Loss

55 dB

Bandwidth

±40 nm
Excess Loss, Typical

0.08 dB
Loss, Ports 1-3

11 dB
Operating Temperature

-40 to 85°C
Package Type

B
Operating Humidity

90–95%

Type

2x2 Broadband Coupler
Fiber Type

Singlemode
Coupling Ratio

10%/90%
Fiber Connector

FC/APC
Operating Wavelength

1310/1550 nm
Maximum Insertion Loss

0.65 dB
Return Loss

55 dB

Bandwidth

±40 nm
Excess Loss, Typical

0.08 dB
Loss, Ports 1-3

11 dB
Operating Temperature

-40 to 85°C
Package Type

B
Operating Humidity

90–95%

Resources & Downloads

2D / 3D CAD Software

Download CAD Files

Drawings And Cad

Fiber pkg -B-S (71 kB, PDF)
