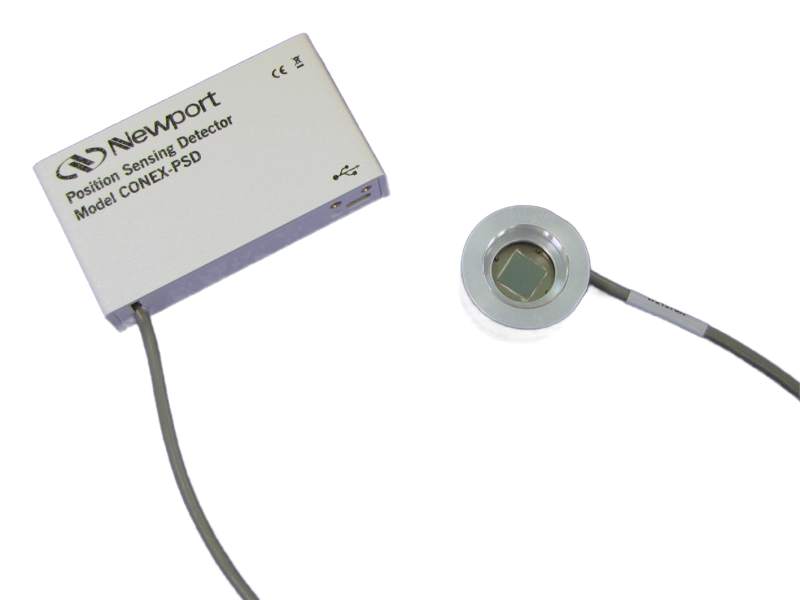

Optical Beam Position Detector, 10x10 mm Sensor, 800-1700 nm

Model: CONEX-PSD10GE

Optical Beam Position Detector, 10x10 mm Sensor, 800-1700 nm

Model: CONEX-PSD10GE

Technical Specs

  • Wavelength Range
    800-1700 nm
  • Sensor Size
    10 x 10 mm
  • Resolution
    12 bit
  • Power Input Range
    10–80% of max. power, see graph for details
  • Sensitivity
    1.5 µm
  • Power Requirements
    Powered through USB interface
  • Responsivity
    0.85 A/W @ 1500 nm
  • Computer Interface
    USB
  • Dimensions
    93.2 x 53 x 23 mm (controller), 38.1 mm diameter x 22.9 mm (sensor head)

Resources & Downloads

Optical Beam Position Detector, 10x10 mm Sensor, 800-1700 nm

Model: CONEX-PSD10GE

$3,250
3 Weeks
