Carriage Lock, UMR8.51

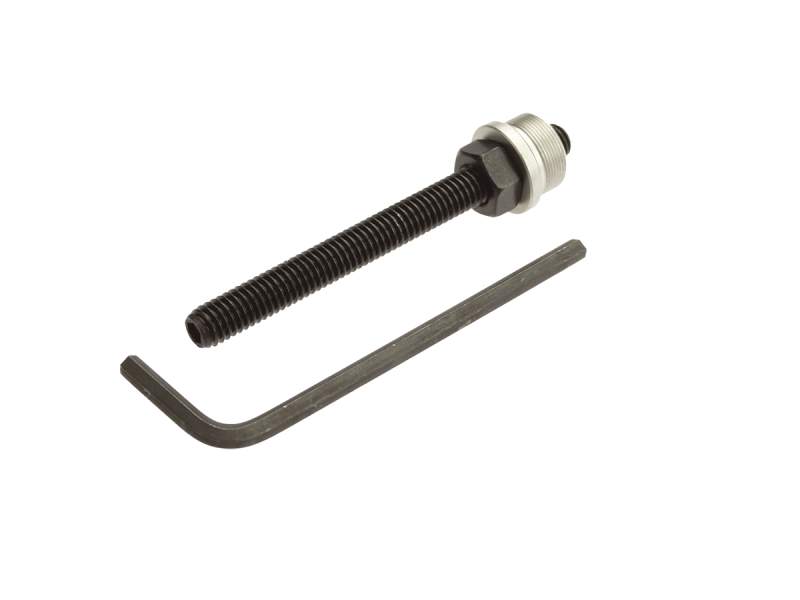

The CL12-51 carriage locking kit includes a screw that mounts in the (M-)UMR8.51 stage body opposite the micrometer. Two carriage locks are required for fixed positioning.
