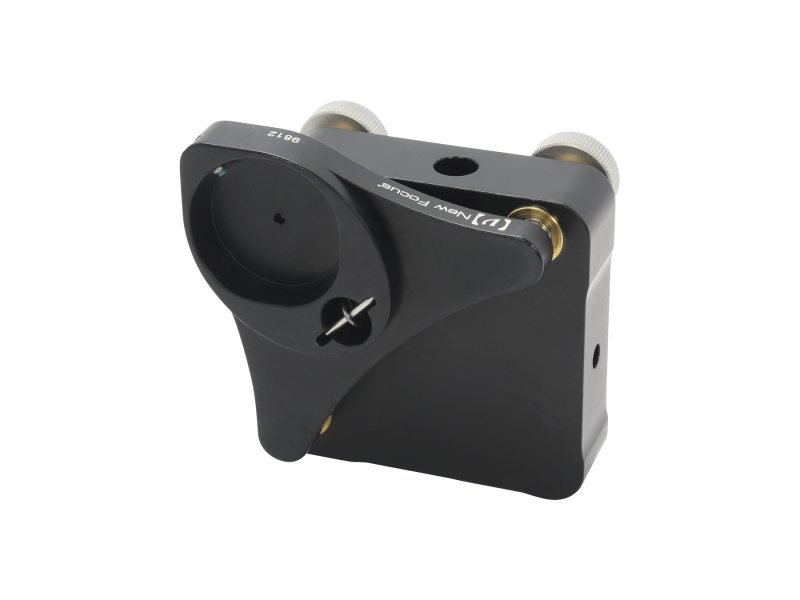

Mirror Mount, Gimbal, Corner, 1.0 in., 3 Knobs
The 9812 Gimbal Mirror Mount offers more stability and higher resolution than traditional non-kinematic gimbal mounts for holding 1.0 in. (25.4 mm) diameter optics. The rotation point in these knob actuated mounts is in line with the center of the mirror, giving you nearly pure tilt with the turn of just one screw. Use them in critical areas where you want high performance without the high cost. 8-32 (M4) through mounting holes.
Resources & Downloads
2D Product Drawings
9812f-Drawing(101.1 kB, PDF)
