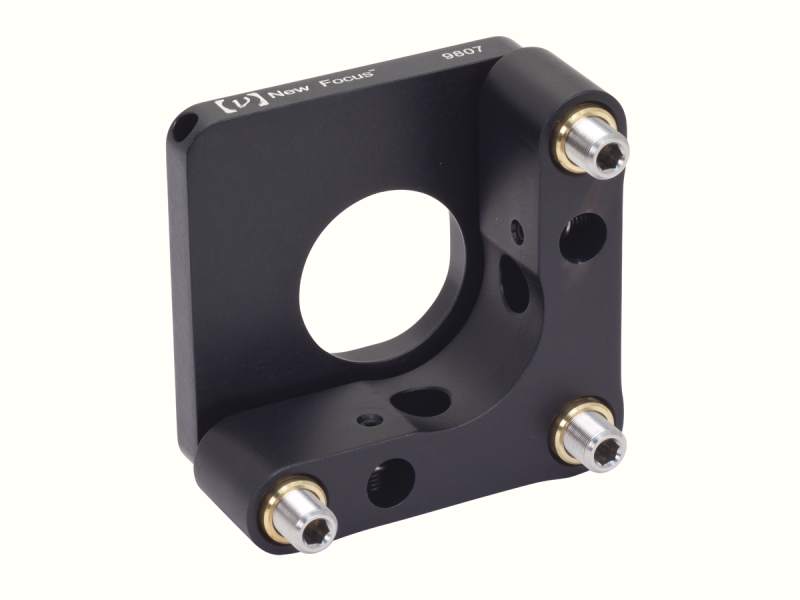

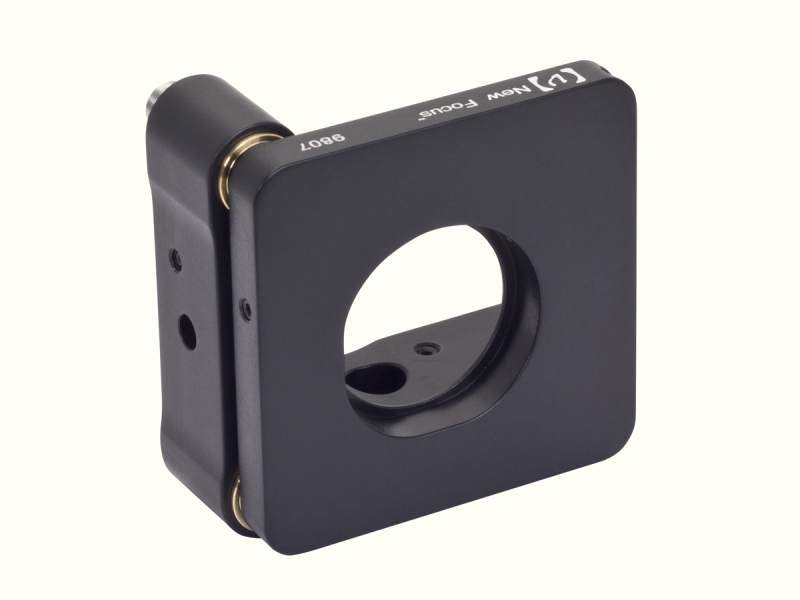

Mirror Mount, Classic, Center, 1.0 in., 3 Allen-Keys

The 9807-K Classic Center Mirror Mount only looks like a conventional 1.0 inch (25.4 mm) diameter mount. The combination of our proprietary precision Allen-key actuated 1/4-80 screws and bushings, sapphire seats, and 5/8 in. thick frames gives you superior stability and precise repeatable adjustment.

Specifications

Technical Specs

Type
Industrial
Mechanism
Kinematic
Optic Diameter
25.4 mm
Number of Actuators
3
Actuator Drive
Allen-Key
Actuator Locks
No
Adjustment Screw Thread
80 TPI
Adjustments
z, θx, θy
Sensitivity
4.4 arc sec
Angular Range
±4°

Actuator Orientation
Left-handed
Optic Loading
Front
Material
Aluminum
Drive Type
Allen-Key, non-locking
Thread Type
8-32 (M4) CLR
Optical Axis Height
25.4 mm
Optic Mounting
Set Screw

Type
Industrial
Mechanism
Kinematic
Optic Diameter
25.4 mm
Number of Actuators
3
Actuator Drive
Allen-Key
Actuator Locks
No
Adjustment Screw Thread
80 TPI
Adjustments
z, θx, θy
Sensitivity
4.4 arc sec
Angular Range
±4°

Actuator Orientation
Left-handed
Optic Loading
Front
Material
Aluminum
Drive Type
Allen-Key, non-locking
Thread Type
8-32 (M4) CLR
Optical Axis Height
25.4 mm
Optic Mounting
Set Screw

Resources & Downloads

3D Product Models

Download CAD Files

2D Product Drawings

9807f-Drawing(94.1 kB, PDF)
