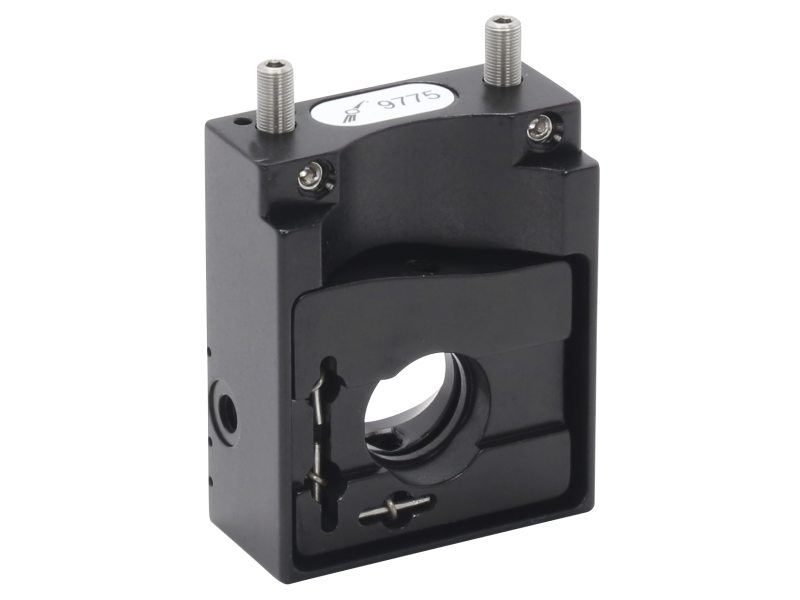

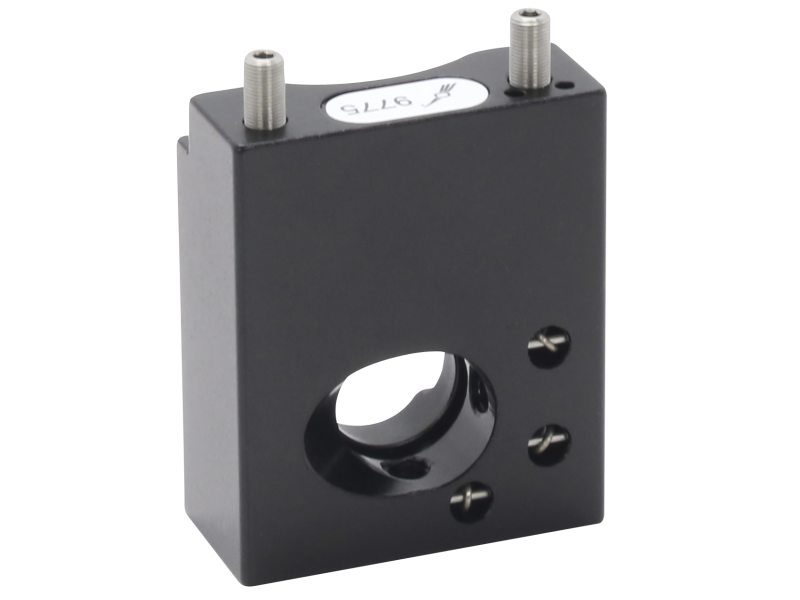

9775-K Mirror Mount

Mirror Mount, Pint-Sized, 0.5 in. Diameter, 2 Allen-Key Top Adjust

Model: 9775-K

$187

In Stock

Compare

Add to List

Product Series Overview

Beam Splitting Top Adjust Mounts

The 9775-K Pint Sized Top Actuated Mirror Mount holds 0.5 in. (12.7 mm) diameter optics, and is ideal for use in compact spaces. It gives you easy access to both tip and tilt adjustments from the Allen-keys on top without worrying about blocking the beam. Top and side mounting schemes are compatible with post and pedestal mounting systems. Relieved bases and thick frames ensure stability, while standard beam heights allow for easy integration into your system. Built-in locks and stiff springs increase long-term stability. 8-32 threaded mounting hole.

Specifications

Technical Specs

Mechanism

Kinematic
Optic Diameter

12.7 mm
Number of Actuators

2
Actuator Drive

Hex Key
Actuator Locks

Yes
Adjustment Screw Thread

80 TPI
Adjustments

θx, θy
Sensitivity

4.3 arc sec

Angular Range

±4°
Optic Loading

Front
Material

Anodized Aluminum
Drive Type

Allen-Key, locking
Thread Type

8-32
Optical Axis Height

12.7 mm

Mechanism

Kinematic
Optic Diameter

12.7 mm
Number of Actuators

2
Actuator Drive

Hex Key
Actuator Locks

Yes
Adjustment Screw Thread

80 TPI
Adjustments

θx, θy
Sensitivity

4.3 arc sec

Angular Range

±4°
Optic Loading

Front
Material

Anodized Aluminum
Drive Type

Allen-Key, locking
Thread Type

8-32
Optical Axis Height

12.7 mm

Resources & Downloads

2D / 3D CAD Software

Download CAD Files

Drawings And Cad

9775c-Drawing (272.3 kB, PDF)
