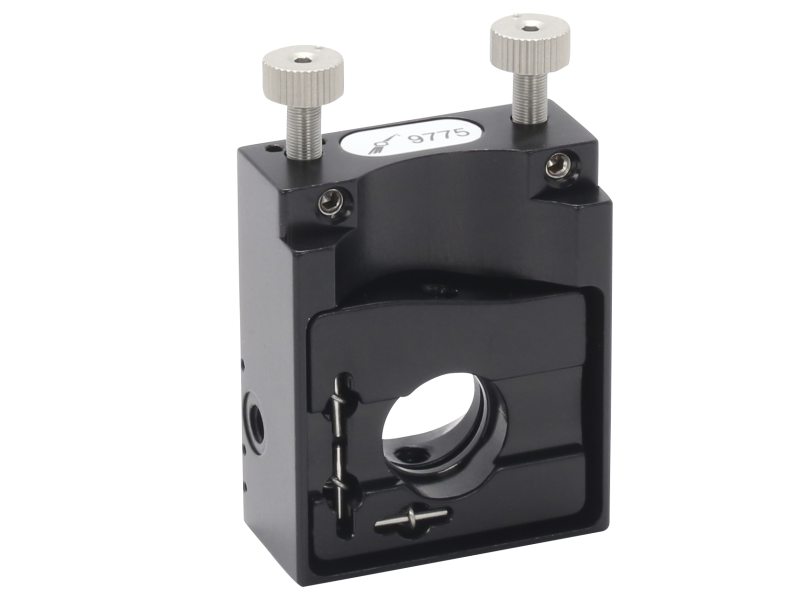

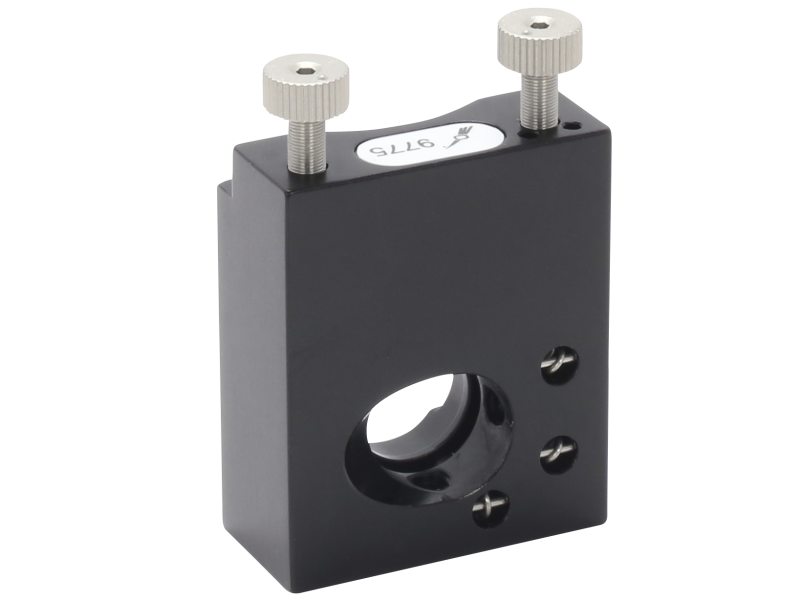

Kinematic Mirror Mount, Pint-Sized, 0.5 in., 2 Knob Top Adjust

Technical Specs

  • Mechanism
    Kinematic
  • Optic Diameter
    12.7 mm
  • Adjustment Screw Thread
    80 TPI
  • Adjustments
    θx, θy
  • Sensitivity
    4.3 arc sec
  • Angular Range
    ±4°
  • Material
    Anodized Aluminum
  • Drive Type
    Knob, locking
  • Thread Type
    8-32
  • Optical Axis Height
    12.7 mm
  • Special Features
    Beam Splitting
