Adjustment Screw, Knob, Unbraked, 19.1 mm Travel, Ball Tip, 1/4-100

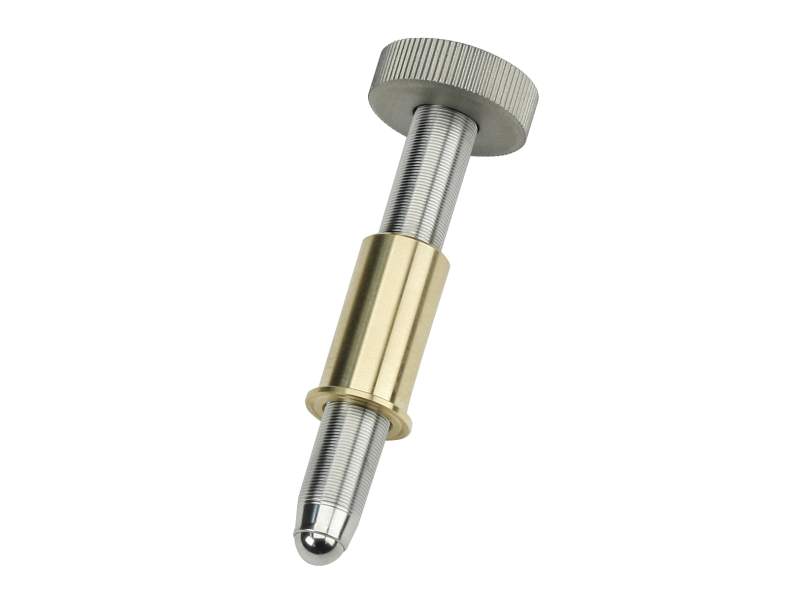

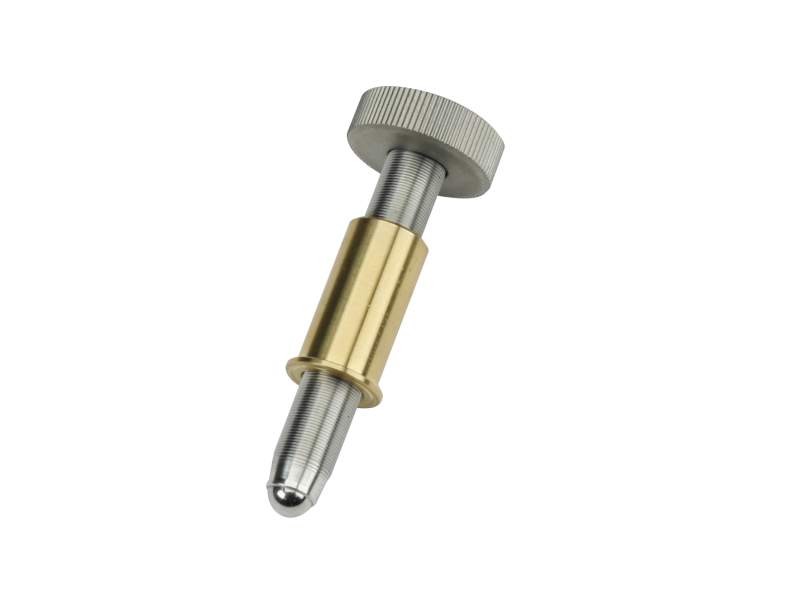

The 0.75 inch (19.05 mm) 9378 Adjustment Screw provides smooth, wobble-free adjustment combined with exceptional long-term stability and low susceptibility to thermal variation. It is the same 1/4-100 precision screw used in our optic mounts and allows you to build your own mounts or positioners. In addition to a travel 0.75 inch (19.05 mm); the screw has a ball tip, unbraked brass bushing, and is knob adjusted.
Resources & Downloads
2D Product Drawings
99-931X(92.2 kB, PDF)
Other
910202-03 RoHS Certificate(293.1 kB, PDF)
