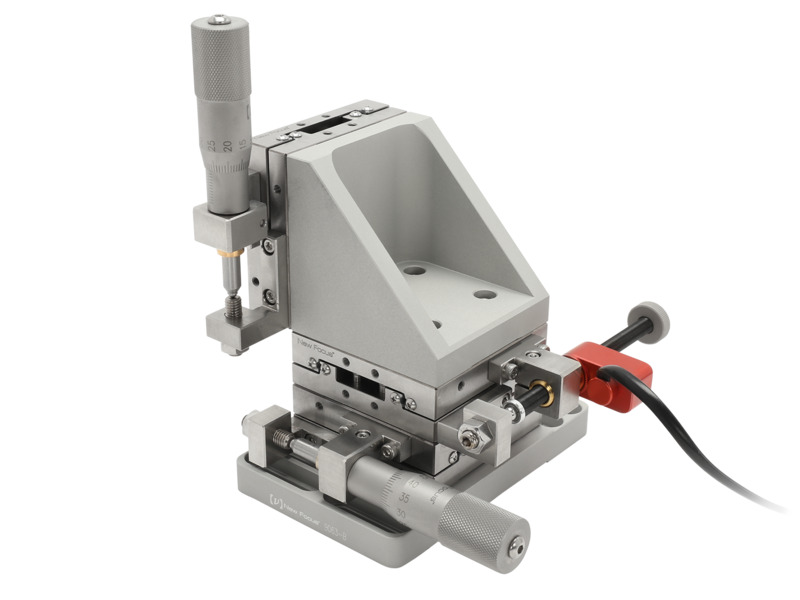

XYZ Linear Stage, Gothic-Arch, 65x65 mm, Micro XZ, Pico Y, 8-32, 1/4-20

Technical Specs

  • Axes of Travel
    XYZ
  • Motorized Axes
    Y
  • Micrometer Axes
    X, Z
  • Travel Range
    25.4 mm
  • Platform Size
    65 x 65 mm
  • Minimum Incremental Motion
    <30 nm
  • Thread Type
    8-32 and 1/4-20
  • Material
    Stainless Steel
  • Bearings
    Gothic Arch Bearings
  • Vertical Load Capacity
    35 N
  • Feedback
    Open Loop
  • Cable Length
    2.1 m
  • Connector Type
    4-Pin
  • Operating Temperature
    10 to 40°C
