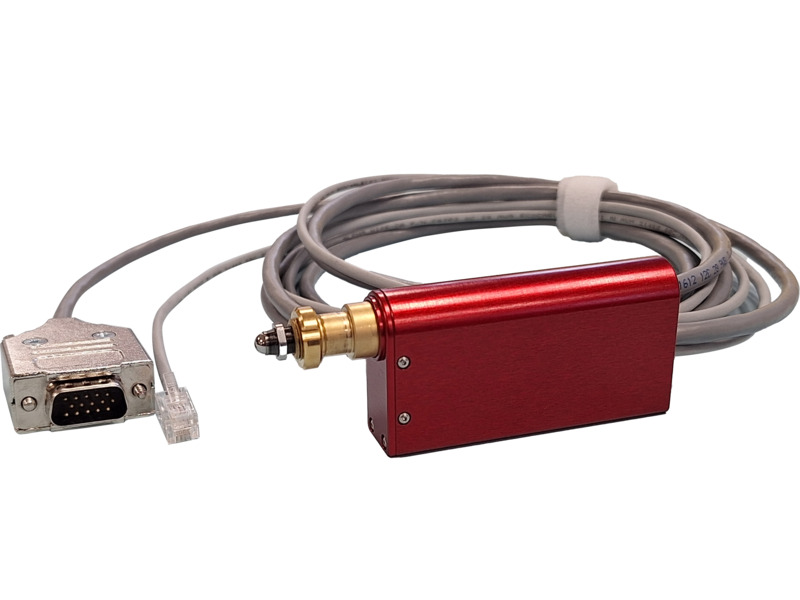

New Picomotor Piezo Actuator, Closed Loop, 12.7 mm Travel, rear encoder cable

The 8315 Closed Loop Picomotor™ Actuator is ideal for applications where closed-loop control and absolute position calibration is required. With an integrated rotary encoder, and forward and reverse limit switches, this unique device offers the best attributes of the standard Picomotor™ actuator -- <30-nm resolution, >5 lb. (22 N) of force along with set-and-forget long-term stability -- with the added benefits of exceptional accuracy and ±1-μm bi-directional repeatability over the entire half-inch travel range. This product replaces the 8310CE with the same performance.
Specifications
- Travel Range12.7 mm
- Minimum Incremental Motion< 30 nm
- Maximum Speed1.2 mm/min
- Axial Load Capacity22 N
- Mounting9.5 mm Shank
- Bi-directional Repeatability, Guaranteed±1 µm
- Frequency2 kHz
- Drive Torque0.018 Nm
- Limit Switches2
- Encoder TypeOptical rotary
- Rated Life>1x109 steps
- Closed Loop Resolution52.9 nm
- Cable Length1.8 m
- Connector Type15-pin D-sub HD & 4-pin RJ-22
- Operating Temperature10-40°C
Resources & Downloads
Literature
Picomotor FAQ(3.1 MB, PDF) 831x Picomotor Datasheet(1.6 MB, PDF)
