liquid light guides with 2 guide sizes shown

Bifurcated Liquid Light Guide, 220-600 nm, 0.12 in. Core, 79 in. Legs

Model: 76845

Add to List

Compare

Add to List

Overview

The 76845 Bifurcated Liquid Light Guide is for dual source applications. The single end does not meet into a common circular core, as the two cores are stacked in the common end. Each leg has an active core of 0.12 inch (3 mm) and a length of 79 inch (2 m). This version has a 220 to 600 nm range.

Product Series Overview

Liquid Light Guides

Technical Specs

Type

Bifurcated Liquid Light Guide
Core Diameter

3.0 mm
Numerical Aperture

0.43

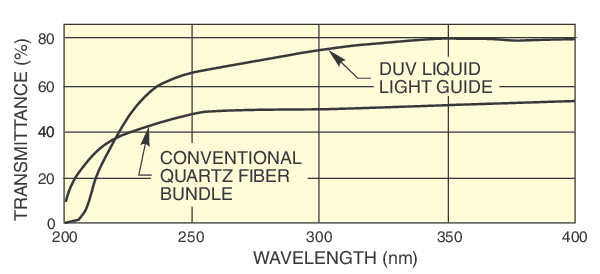

Transmittance Range

220 - 600 nm
Fiber Length

2 m

Fiber Connector

11 mm Ferrule
Acceptance Cone, 2a

50°
Fiber Material

Liquid

Technical Specs

Type

Bifurcated Liquid Light Guide
Core Diameter

3.0 mm
Numerical Aperture

0.43
Transmittance Range

220 - 600 nm
Fiber Length

2 m

Fiber Connector

11 mm Ferrule
Acceptance Cone, 2a

50°
Fiber Material

Liquid

Resources & Downloads

3D Product Models

Download CAD Files

2D Product Drawings

LS-255b (141.6 kB, PDF)
