Sorry, this product is no longer offered for sale. The recommended replacement product is 6251NS.

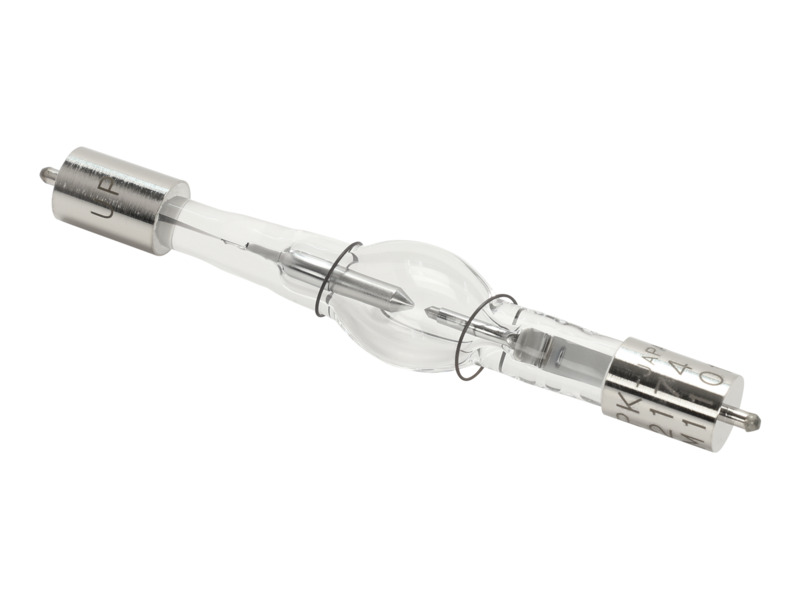

Xenon Arc Lamp, 75 Watt, High Stability
The 6247 Replacement Xenon High Stability Lamp is commonly called a "Super-Quiet" Lamp. Most arc lamps suffer from "arc wander," the gradual movement of the arc point over time, caused by a lack of electrons emitted from the cathode. This results in the need to re-adjust the lamp, over its lifetime. This 75 watt lamp with a 1 x 1.5 mm effective arc size addresses the problem of the arc wander by using a high-performance cathode. The radiant intensity won’t drop off over the lamp’s lifetime. This lamp is compatible with the 66148 Socket Adapter (not included).
Specifications
- Lamp TypeXe, High Stability
- Lamp Wattage75 W
- Average life1000 h
- Bulb Diameter13 mm
- Effective Arc Size1.0 x 1.5 mm
- Horizontal Intensity120 cd
- Approximate Brightness300 cd mm-2
- Approximate Flux1200 lm
- Lamp Current5.4 A
- Lamp Voltage15 V
Resources & Downloads
Literature
Light Sources(1.6 MB, PDF)
2D Product Drawings
LS-089Ag(476.9 kB, PDF)
