Beam Pick-Off Optic, 2.0 in. Diameter, N-BK7

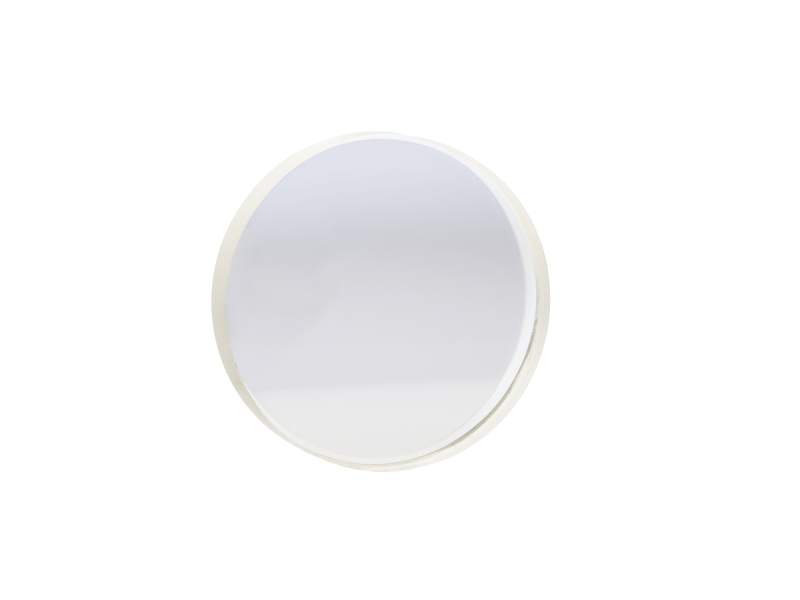

The 5802 Beam Pick-Off Optic is ideal for applications where you want to monitor your laser beam, whatever the wavelength. Because the 2.0 inch (50.8 mm) diameter wedge uses simple Fresnel reflection rather than a dielectric coating, it operates over a wide wavelength range. And you can vary the pick-off amount by changing the angle of incidence. Unlike commonly used optic flats, the wedge prevents interference from the front and back surfaces.

Specifications

Technical Specs

Wavelength Range
350-2000 nm
Diameter
50.8 mm
Material
Grade A N-BK7
Antireflection Coating
Uncoated
Surface Flatness
≤λ/10 at 632.8 nm over the clear aperture
Surface Quality
20-10 scratch-dig
Diameter Tolerance
+0.0/-0.20 mm

Thickness
10.0 mm
Wedge
180 ±6 arc min
Clear Aperture
45.7 mm
Cleaning
See How to Clean Optics

Wavelength Range
350-2000 nm
Diameter
50.8 mm
Material
Grade A N-BK7
Antireflection Coating
Uncoated
Surface Flatness
≤λ/10 at 632.8 nm over the clear aperture
Surface Quality
20-10 scratch-dig
Diameter Tolerance
+0.0/-0.20 mm

Thickness
10.0 mm
Wedge
180 ±6 arc min
Clear Aperture
45.7 mm
Cleaning
See How to Clean Optics
