Broadband SuperMirror, 0-45 deg. AOI, 25.4 mm, R>99.9%, 485-700 nm
Broadband SuperMirror, 0-45 deg. AOI, 25.4 mm, R>99.9%, 485-700 nm
Model: 10CM00SB.1
Back-to-School Sale
Save 50% off for a limited time!
Learn More
Save 50% off for a limited time!
Learn More
Product Series Overview
Superior Fused Silica Dielectric SuperMirrorsThe 10CM00SB.1 is a Broadband Super Mirror, 25.4 mm in diameter, 6.35mm thick, and coated to have a reflectivity of > 99.9%, 0-45 °, from 485 to 700 nm.
Broadband SuperMirrors™are extremely high performance dielectric mirrors. They are produced with ion beam sputtered (IBS) coatings on super polished fused silica substrates to achieve very low scatter and absorption. These mirrors have reflectivity greater than 99.9%, independent of polarization, at any angle of incidence from 0–45°.
Broadband SuperMirrors™are extremely high performance dielectric mirrors. They are produced with ion beam sputtered (IBS) coatings on super polished fused silica substrates to achieve very low scatter and absorption. These mirrors have reflectivity greater than 99.9%, independent of polarization, at any angle of incidence from 0–45°.
Specifications
- Wavelength RegionVIS
- Wavelength Range485-700 nm
- Mirror ShapeRound
- Diameter25.4 mm
- Mirror SizeØ25.4 mm
- Thickness6.35 mm
- MaterialUV Grade Fused Silica
- Coating TypeBroadband IBS Coating
- Coating CodeSB.1
- Surface Quality20-10 scratch-dig (10-5 in central 50%)
- Surface Flatnessλ/10 at 632.8 nm
- Wedge30 ±15 arc min
- Angle of Incidence0-15°
- Clear Aperture≥central 80% of diameter
- Back SurfaceCommercial Polish

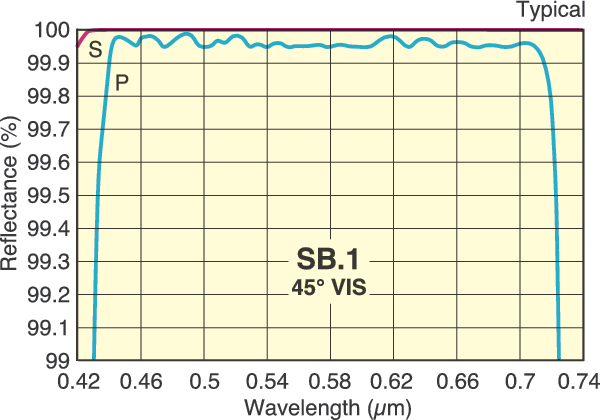

- ReflectivityRs, Rp>99.9% @ 485-700 nm
- Diameter Tolerance+0/-0.1 mm
- Thickness Tolerance±0.38 mm
- Chamfers±0.25 mm
- Chamfers Angle Tolerance45° ± 15°
- Cleaning
Resources & Downloads
3D Product Models
Other
10CM00SB.1 RoHS Certificate(264.9 kB, PDF) 10CM00SB.1_ROHS2-2021.pdf(279.9 kB, PDF)
2D Product Drawings
10CM00S Drawing(363.8 kB, PDF)
