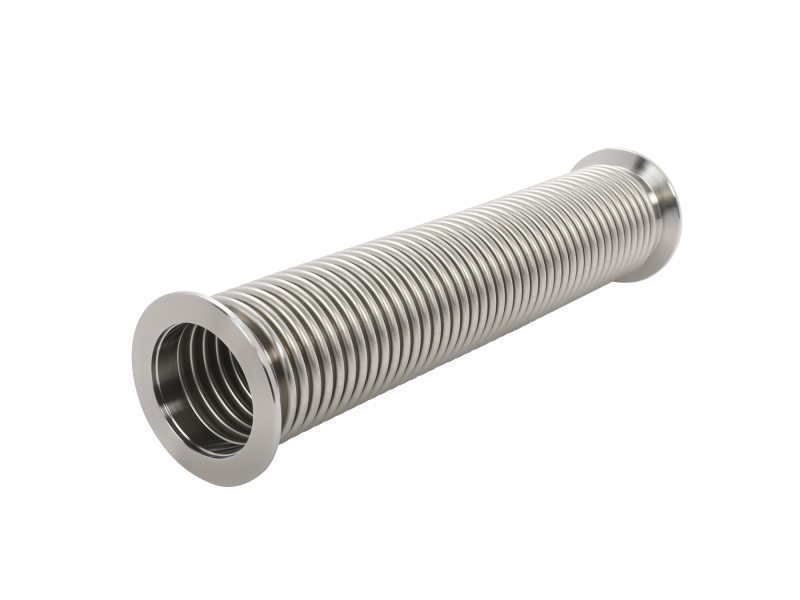

Metal Wall Vacuum Hose, NW50 ISO-KF, 303 mm Length, 0.15 mm Hose Wall
The 100319817 Thin Metal Wall Vacuum Hose is 11.93 inch (303 mm) in length with size NW50 ISO-KF vacuum flanges on each end. This unsheathed vacuum hose has a thin 0.06 in. (0.15 mm) stainless steel hose wall with a 3 1/4 inch static bend radius and can be compressed to a 8.64 in. (219 mm) length. Series 31 thin stainless steel wall vacuum hose can be used in rough piping applications.
Specifications
- Component TypeMetal Wall Vacuum Hose
- SeriesSeries 31
- MaterialStainless Steel
- Flange TypeISO-KF
- Flange SizeNW50
- Wall Thickness0.006 in. (0.15 mm)
- Static Bend Radius3.25 in.
- Spring Rate12 lb/in.
- Free Length303 mm
- Compressed Length219 mm
- A303 mm
- B219 mm
