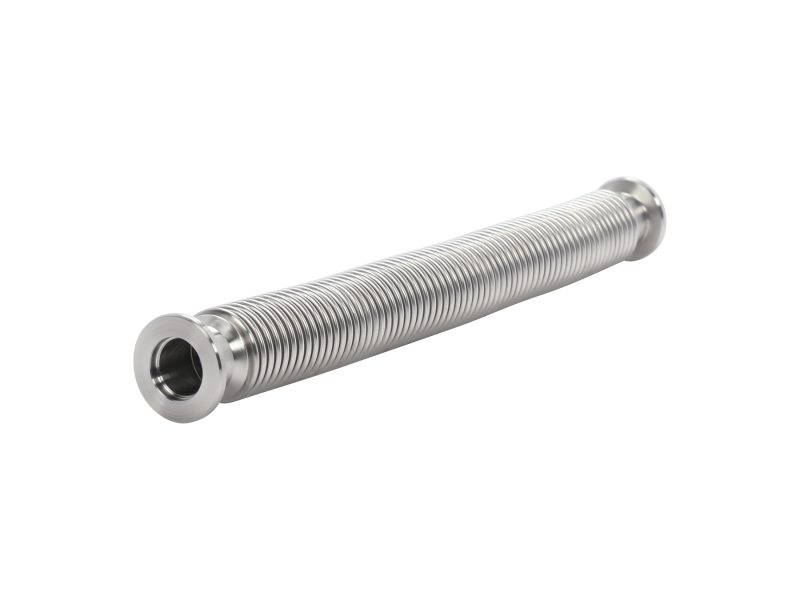

Metal Wall Vacuum Hose, NW16 ISO-KF, 250 mm Length, 0.3 mm Hose Wall
The 100315901 Thick Metal Wall Vacuum Hose is 9.84 inch (250 mm) in length with size NW16 ISO-KF vacuum flanges on each end. This unsheathed vacuum hose has a thick 0.12 in. (0.3 mm) stainless steel hose wall giving it a 256 lb./in spring rate and a 2 1/8 inch static bend radius. The static bend radius for this Series 31 vacuum hose is to the point of permanent deformation. Metal wall vacuum hose can be used in rough piping applications. We also offer thin metal wall vacuum hose for applications where compression or additional flexibility is needed.
Specifications
- Component TypeMetal Wall Vacuum Hose
- SeriesSeries 31
- MaterialStainless Steel
- Flange TypeISO-KF
- Flange SizeNW16
- Wall Thickness0.012 in. (0.30 mm)
- Length250 mm
- Static Bend Radius2.125 in.
- Spring Rate256 lb/in.
- A250 mm
