Zero-Order Waveplate, Quarter-Wave, Polymer, 12.7 mm Diameter, 532 nm

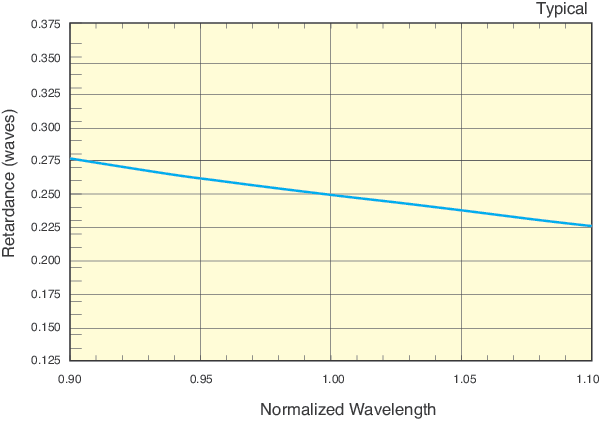

The 05RP34-532 True Zero-Order Wave Plate consists of a birefringent polymer film cemented between two high-precision, high efficiency, broadband antireflection coated N-BK7 windows. This construction ensures excellent transmitted 532 nm wavefront quality and λ/2 retardation, while minimizing beam deviation and surface reflection losses. The assembly is mounted in a 12.7 mm outer diameter black anodized aluminum housing for protection and ease of mounting and has a 5.1 mm clear aperture. The wave plate fast axis marked for alignment reference. Polymer wave plates offer benefits over quartz wave plates such as better angular acceptance and less sensitivity to wavelength change. Polymer wave plates have excellent angular field of view. Retardation changes by less than 1% over a ±12° incidence angle. The polymer material has very low birefringence that is nearly constant with wavelength.

Specifications

Technical Specs

Diameter
12.7 mm
Wavelength Range
532 nm
Retardation
λ/4
Retardation Accuracy
±λ/350
Material
Grade A N-BK7
Clear Aperture
5.1 mm
Housing
Black anodized aluminum
Acceptance Angle
±9°
Transmitted Beam Deviation
≤1 arc min
Wavefront Distortion
≤λ/5 at 632.8 nm over the full aperture

Damage Threshold
500 W/cm² CW, 0.5 J/cm² with 10 nsec pulses, @ 1064 nm, 0.3 J/cm² with 10 nsec pulses at 532 nm, typical
Antireflection Coating
Broadband, multilayer coating, R <0.5%
Surface Quality
40-20 scratch-dig
Diameter Tolerance
±0.13 mm
Thickness
5.7 mm
Operating Temperature Range
-20 to 50°C
Cleaning
See How to Clean Optics

Diameter
12.7 mm
Wavelength Range
532 nm
Retardation
λ/4
Retardation Accuracy
±λ/350
Material
Grade A N-BK7
Clear Aperture
5.1 mm
Housing
Black anodized aluminum
Acceptance Angle
±9°
Transmitted Beam Deviation
≤1 arc min
Wavefront Distortion
≤λ/5 at 632.8 nm over the full aperture

Damage Threshold
500 W/cm² CW, 0.5 J/cm² with 10 nsec pulses, @ 1064 nm, 0.3 J/cm² with 10 nsec pulses at 532 nm, typical
Antireflection Coating
Broadband, multilayer coating, R <0.5%
Surface Quality
40-20 scratch-dig
Diameter Tolerance
±0.13 mm
Thickness
5.7 mm
Operating Temperature Range
-20 to 50°C
Cleaning
See How to Clean Optics
