Three-Axis Ball-and-Socket Tilt Stages

Products
Specifications
Features
Contact Us

Overview

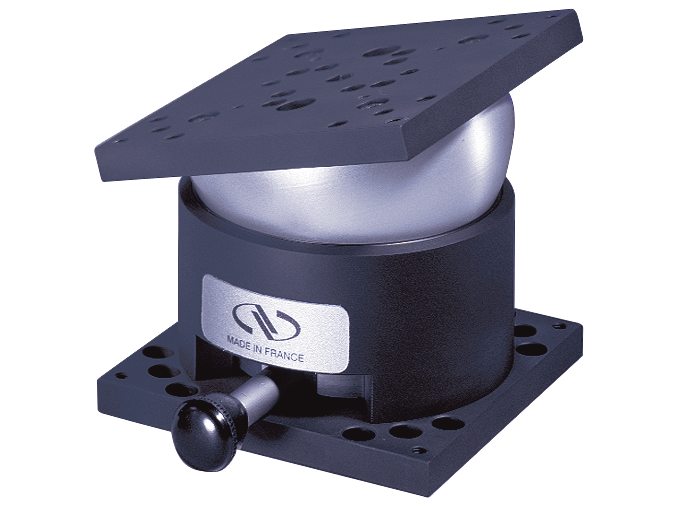

Ball and Socket Stages provide up to ±25° of tilt in any direction and a full 360° of rotation. They are practical for rapid coarse alignment with full freedom of angular rotation..These tilt and rotation stages are useful for positioning video cameras, detectors, lighting systems, and targets.

Three axis tilt and rotation stages
±25° tilt in any direction
360° rotation with clutch lock

See All Features

Products

Show entries

Search:

		Compare	Model	ranking	Drawings, CAD & Specs		Tilt	Tip	Rotation	Platform Size	Load Capacity	Availability	Featured Item	Price		Brand
		M-RN-50 Ball and Socket Stage, ±25° Tilt, 50x50 mm Platform, Metric $500.00 In Stock	M-RN-50 Ball and Socket Stage, ±25° Tilt, 50x50 mm Platform, Metric	0.0		0.0	±25°	±25°	360°	50 x 50 mm	15 kg	In Stock		$500.00		Newport
		M-RN-86 Ball & Socket Stage ,±25° Tilt,360° Rotation, 86x86mm Platform, Metric $633.00 Contact Us	M-RN-86 Ball & Socket Stage ,±25° Tilt,360° Rotation, 86x86mm Platform, Metric	0.0		0.0	±25°	±25°	360°	86 x 86 mm	25 kg	Contact Us		$633.00		Newport

Showing 1 to 2 of 2 entries

Previous1Next

Specifications

Search:

Models	M-RN-50 Model: M-RN-50 Ball and Socket Stage, ±25° Tilt, 50x50 mm Platform, Metric $500.00 In Stock See Full Product Details Product Series Overview Three-Axis Ball-and-Socket Tilt Stages	M-RN-86 Model: M-RN-86 Ball & Socket Stage ,±25° Tilt,360° Rotation, 86x86mm Platform, Metric $633.00 Contact Us See Full Product Details Product Series Overview Three-Axis Ball-and-Socket Tilt Stages
Tilt	±25°	±25°
Tip	±25°	±25°
Rotation	360°	360°
Platform Size	50 x 50 mm	86 x 86 mm
Load Capacity	15 kg	25 kg
Thread Type	M3	M3 and M4

Showing 1 to 6 of 6 entries

Features

360° Quick Positioning and Fast Locking

These tilt/rotation stages are useful for manually positioning video cameras, detectors, lighting systems, or targets and then locking them in place. The ball and socket design enables a full 360° rotation range. A simple clutch lever locks and unlocks the rotation of the platform in any position.
