Compare Model Drawings, CAD & Specs Availability Price
New OD8-FFDB2005
ODiate® Multiband Fluorescence Filter Set, ODiate®, DAPI and TRITC Fluorophores
Contact Us
 New OD8-FFDB2005 ODiate® Multiband Fluorescence Filter Set, ODiate®, DAPI and TRITC Fluorophores
Contact Us
New OD8-FFDB2010
ODiate® Multiband Fluorescence Filter Set, ODiate®, FITC and Cy5 Fluorophores
Contact Us
 New OD8-FFDB2010 ODiate® Multiband Fluorescence Filter Set, ODiate®, FITC and Cy5 Fluorophores
Contact Us

Specifications

  • Transmission
    Excitation & Emission Filters: Tavg ≥ 96% over passband
    Dichroic Beamsplitter Filter: Tavg ≥ 96% over Emission passbands Tavg ≥ 95% to 900 nm
  • Reflection
    Dichroic Beamsplitters: Ravg ≥ 98% over Excitation passband
  • Angle of Incidence
    Excitation & Emission Filters: 0-5°
    Dichroic Beamsplitters: 45±1.5°

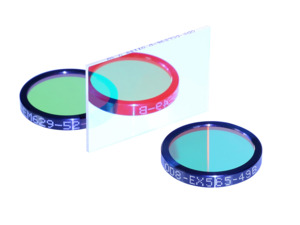

  • Type
    Fluorescence Filter Set

Features

Optimized Coatings and Engineering Expertise

Newport pushed the boundaries with the introduction of our ODiate Fluorescence Filter Sets, to allow customers to fully optimize their system performance.  Our expert engineering team has been involved from the first stage of design to ensure that we exceed your requirements and continues through the entire process of continual production deliveries.

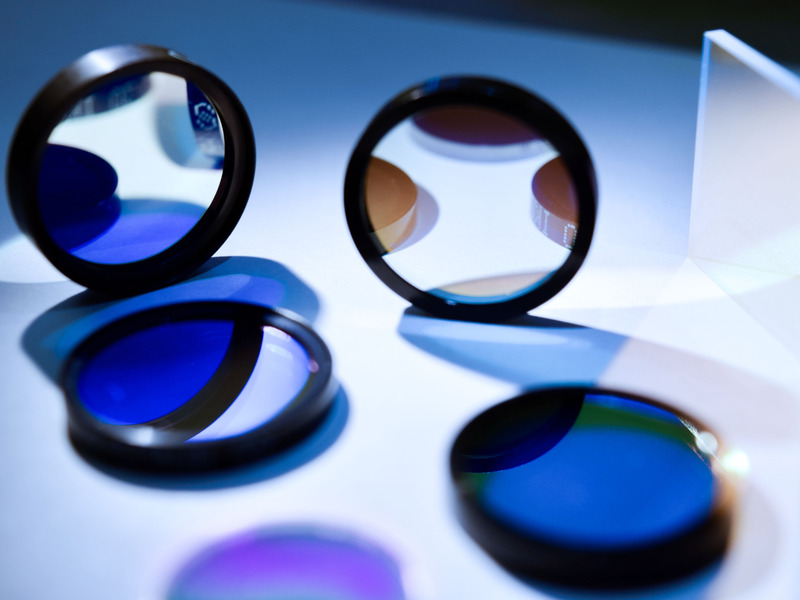

ODiate Filter Manufacturing & Metrology

ODiate Fluorescence Filter Sets are manufactured using advanced thin-film deposition systems ensures optical filters achieve excellent transmission and reflection accuracy. ODiate filter specifications are verified utilizing commercial spectrophotometric tools in addition to Newport’s proprietary custom in-house tools to measure edge steepness resolution, and deep blocking to optical density 8 [-log10(T)].

Environmental Stability and Physical Durability

The coating systems used to produce ODiate filters use a dense sputtering process to provide robust environmental reliability to meet the highest demands for thin-film coatings. The resulting highly durable coatings meet or exceed testing procedures including humidity, thermal shock, adhesion, chemical resistance, and moderate abrasion per U.S. Military and international standards.
