Miniature High Voltage (MHV) Connector Cables

Overview

Miniature high voltage connector cables use an MHV RF connector terminated on a coaxial cable. Photomultiplier Tubes (PMTs) require high voltage for operation. These high voltage cables for use with the 70705 (a previous generation, now discontinued power supply) and 70706 PMT Power Supply. They are not compatible with BNC connectors, even though they look similar.

MHV terminated cables
High voltage applications
Compatible with Photomultiplier Tube power supply

Products

Compare	Model	Compatibility	rankScore	Type	Length	Availability	Price	Brand
70019 Cable, MHV Male to Male, 3 Foot (1 Meter) Length $1,025 Contact Us	70019 Cable, MHV Male to Male, 3 Foot (1 Meter) Length	UNIVERSAL	1.0	MHV Cable	1.0 m	Contact Us	$1,025	Oriel Instruments

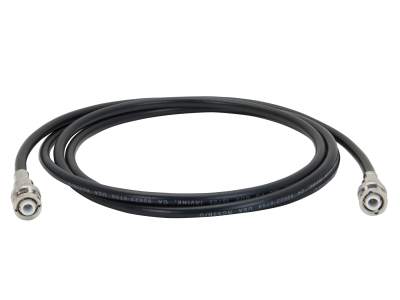

70020 Cable, MHV Male to Male, 6 Foot (1.8 Meter) Length $170 In Stock	70020 Cable, MHV Male to Male, 6 Foot (1.8 Meter) Length	UNIVERSAL	1.0	MHV Cable	1.8 m	In Stock	$170	Oriel Instruments
70097 Cable, MHV Male to SHV Plug, 6 Foot (1.8 Meter) Length $235 In Stock	70097 Cable, MHV Male to SHV Plug, 6 Foot (1.8 Meter) Length	UNIVERSAL	1.0	MHV Cable	1.8 m	In Stock	$235	Oriel Instruments

Show All
