Overview

PD Series laser beam dumps feature a patent-pending structure designed to absorb incident light and passively dissipate heat through natural convection. Laser beam dumps are used to capture unwanted and stray beams or contain a beam within a portion of an instrument.

Absorbs incident laser beams
Patent pending design minimizes backskatter
Up to 80 W maximum power
Multiple imperial and metric mounting options built-in

See All Features

Products

Compare	Model	Compatibility	rankScore		Availability	Price	Brand
PD10 Laser Beam Dump, 10 W Max Average Power, 200-3000 nm $79 In Stock	PD10 Laser Beam Dump, 10 W Max Average Power, 200-3000 nm	UNIVERSAL	1.0	1.0	In Stock	$79	Newport
PD30 Laser Beam Dump, 30 W Max Average Power, 200-3000 nm $136 In Stock	PD30 Laser Beam Dump, 30 W Max Average Power, 200-3000 nm	UNIVERSAL	1.0	2.0	In Stock	$136	Newport
PD50 Laser Beam Dump, 50 W Max Average Power, 200-3000 nm $201 In Stock	PD50 Laser Beam Dump, 50 W Max Average Power, 200-3000 nm	UNIVERSAL	1.0	3.0	In Stock	$201	Newport
PD80 Laser Beam Dump, 80 W Max Average Power, 200-3000 nm $273 In Stock	PD80 Laser Beam Dump, 80 W Max Average Power, 200-3000 nm	UNIVERSAL	1.0	4.0	In Stock	$273	Newport

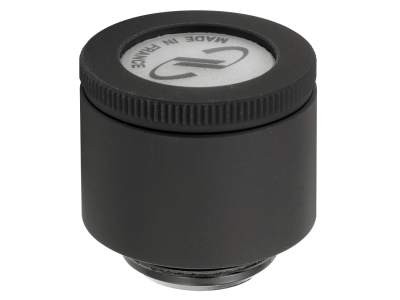

PL15 Laser Beam Dump, 30 W/cm² Max Power Density, RMS Thread $192 In Stock	PL15 Laser Beam Dump, 30 W/cm² Max Power Density, RMS Thread	UNIVERSAL	1.0	5.0	In Stock	$192	Newport

Show All

Specifications

Models	PD10	PD30	PD50	PD80	PL15
Laser Type	CW and Pulsed	CW and Pulsed	CW and Pulsed	CW and Pulsed	CW
Wavelength Range	200-3000 nm	200-3000 nm	200-3000 nm	200-3000 nm
Maximum Average Power	10 W	30 W	50 W	80 W
Maximum Peak Power Density ¹		25 kW/cm²	25 kW/cm²	25 kW/cm²
Maximum Average Power Density	30 W/cm²	60 W/cm²	125 W/cm²	150 W/cm²	30 W/cm²
Maximum Energy Density	10 J/cm²	30 J/cm²	40 J/cm²	40 J/cm²
Backscatter	5.46 x 10⁻⁴	4.62 x 10⁻⁴	5.80 x 10⁻⁴	5.80 x 10⁻⁴	1.0 x 10⁻⁴
Entrance Aperture	Ø8 mm	Ø11 mm	Ø11 mm	Ø11 mm	Ø15 mm
Acceptance Angle	±5°	±5°	±5°	±5°

Notes:

General Notes:

To help identify the appropriate beam dump, utilize the Ophir Power Density Calculator to determine your specific power density or energy density requirements.
Caution: Beam dumps may become hot to the touch when operated near their maximum power rating.

At 355 nm, 500 kHz, 10 ns

Features

Enhanced Laser Safety with Backscatter Control

The PD Series Beam Dumps feature an innovative patent-pending structure designed to absorb incident light and passively dissipate heat through natural convection. The interior incorporates a Silicon Carbide scattering surface, effectively able to suppress and reduce backscatter of incident CW and Pulsed beams. As a result, laser safety for personnel and equipment is greatly enhanced.

Versatile Mounting Options

These beam dumps are designed to be post-mountable and feature an 8-32 and M4 threaded holes on opposing sides. This configuration allows for direct mounting onto a variety of our posts and pedestals. The PD30, PD50 and PD80 models are also equipped with front imperial and metric tapped holes, providing additional mounting options.

Easily Integrate with 30 mm Cage System

The PD10 and PD30 can be coupled with adapters (SP30C and AP30C respectively) to conveniently integrate into existing 30 mm cage assemblies.

Accessories

PD10 and PD30 Optic Cage Mounts

	Compare	Description	Compatibility	Drawings, CAD & Specs	Avail.	Price
		AP30C Beam Dump Mount, Standard, 30 mm Optics Cage, PD30	UNIVERSAL		In Stock	$43
		SP30C Beam Dump Mount, Insertable, 30 mm Optics Cage, PD10	UNIVERSAL		In Stock	$40
