Compare Model Drawings, CAD & Specs Transmittance Range Reflectance Band Availability Price
25.5 x 36 mm fluorescence longpass dichroic filter
Fluorescence Dichroic Filter, 25.5 x 36 mm, 425-515 nm Trans.
$235
In Stock
425 - 515 nm 325 - 395 nm
In Stock
25.5 x 36 mm fluorescence longpass dichroic filter
Longpass Dichroic Filter, Fluorescence, 25.5 x 36 mm, 425-515 nm Trans.
$238
In Stock
425 - 515 nm 325 - 395 nm
In Stock
25.5 x 36 mm fluorescence longpass dichroic filter
Longpass Dichroic Filter, Fluorescence, 25.5 x 36 mm, 454-495 nm Trans.
$235
In Stock
454 - 495 nm 375 - 420 nm
In Stock
25.5 x 36 mm fluorescence longpass dichroic filter
Longpass Dichroic Filter, Fluorescence, 25.5 x 36 mm, 492-510 nm Trans.
$235
In Stock
492 - 510 nm 420 - 425 nm
In Stock
25.5 x 36 mm fluorescence longpass dichroic filter
Longpass Dichroic Filter, Fluorescence, 25.5 x 36 mm, 487-545 nm Trans.
$238
In Stock
487 - 545 nm 420 - 475 nm
In Stock
25.5 x 36 mm fluorescence longpass dichroic filter
Longpass Dichroic Filter, Fluorescence, 25.5 x 36 mm, 520-570 nm Trans.
$238
In Stock
520 - 570 nm 400 - 445 nm
In Stock
25.5 x 36 mm fluorescence longpass dichroic filter
Longpass Dichroic Filter, Fluorescence, 25.5 x 36 mm, 512-570 nm Trans.
$238
In Stock
512 - 570 nm 440 - 492 nm
In Stock
25.5 x 36 mm fluorescence longpass dichroic filter
Longpass Dichroic Filter, Fluorescence, 25.5 x 36 mm, 512-570 nm Trans.
$235
In Stock
512 - 570 nm 455 - 500 nm
In Stock
25.5 x 36 mm fluorescence longpass dichroic filter
Longpass Dichroic Filter, Fluorescence, 25.5 x 36 mm, 520-565 nm Trans.
$235
In Stock
520 - 565 nm 460 - 510 nm
In Stock
25.5 x 36 mm fluorescence longpass dichroic filter
Longpass Dichroic Filter, Fluorescence, 25.5 x 36 mm, 531-750 nm Trans.
$238
In Stock
531 - 750 nm 480 - 511 nm
In Stock
25.5 x 36 mm fluorescence longpass dichroic filter
Longpass Dichroic Filter, Fluorescence, 25.5 x 36 mm, 530-595 nm Trans.
$238
In Stock
530 - 595 nm 470 - 523 nm
In Stock
25.5 x 36 mm fluorescence longpass dichroic filter
Longpass Dichroic Filter, Fluorescence, 25.5 x 36 mm, 537-610 nm Trans.
$235
In Stock
537 - 610 nm 470 - 523 nm
In Stock
25.5 x 36 mm fluorescence longpass dichroic filter
Longpass Dichroic Filter, Fluorescence, 25.5 x 36 mm, 550-615 nm Trans.
$235
In Stock
550 - 615 nm 480 - 532 nm
In Stock
25.5 x 36 mm fluorescence longpass dichroic filter
Longpass Dichroic Filter, Fluorescence, 25.5 x 36 mm, 567-620 nm Trans.
$235
In Stock
567 - 620 nm 490 - 550 nm
In Stock
25.5 x 36 mm fluorescence longpass dichroic filter
Longpass Dichroic Filter, Fluorescence, 25.5 x 36 mm, 500-560 nm Trans.
In Stock
In Stock
25.5 x 36 mm fluorescence longpass dichroic filter
Longpass Dichroic Filter, Fluorescence, 25.5 x 36 mm, 587-650 nm Trans.
$238
In Stock
587 - 650 nm 500 - 565 nm
In Stock
25.5 x 36 mm fluorescence longpass dichroic filter
Longpass Dichroic Filter, Fluorescence, 25.5 x 36 mm, 587-650 nm Trans.
$235
In Stock
587 - 650 nm 500 - 565 nm
In Stock
25.5 x 36 mm fluorescence longpass dichroic filter
Longpass Dichroic Filter, Fluorescence, 25.5 x 36 mm, 592-660 nm Trans.
$238
In Stock
592 - 660 nm 540 - 582 nm
In Stock
25.5 x 36 mm fluorescence longpass dichroic filter
Longpass Dichroic Filter, Fluorescence, 25.5 x 36 mm, 592-660 nm Trans.
$238
In Stock
592 - 660 nm 540 - 582 nm
In Stock
25.5 x 36 mm fluorescence longpass dichroic filter
Longpass Dichroic Filter, Fluorescence, 25.5 x 36 mm, 612-675 nm Trans.
$238
In Stock
612 - 675 nm 532 - 585 nm
In Stock
25.5 x 36 mm fluorescence longpass dichroic filter
Longpass Dichroic Filter, Fluorescence, 25.5 x 36 mm, 608-700 nm Trans.
$235
4 Weeks
608 - 700 nm 525 - 588 nm
4 Weeks
25.5 x 36 mm fluorescence longpass dichroic filter
Longpass Dichroic Filter, Fluorescence, 25.5 x 36 mm, 619-680 nm Trans.
$238
In Stock
619 - 680 nm 540 - 590 nm
In Stock
25.5 x 36 mm fluorescence longpass dichroic filter
Longpass Dichroic Filter, Fluorescence, 25.5 x 36 mm, 647-710 nm Trans.
$235
In Stock
647 - 710 nm 575 - 626 nm
In Stock
25.5 x 36 mm fluorescence longpass dichroic filter
Longpass Dichroic Filter, Fluorescence, 25.5 x 36 mm, 620-720 nm Trans.
$238
In Stock
620 - 720 nm 570 - 646 nm
In Stock
25.5 x 36 mm fluorescence longpass dichroic filter
Longpass Dichroic Filter, Fluorescence, 25.5 x 36 mm, 667-725 nm Trans.
$235
In Stock
667 - 725 nm 585 - 650 nm
In Stock
25.5 x 36 mm fluorescence longpass dichroic filter
Longpass Dichroic Filter, Fluorescence, 25.5 x 36 mm, 673-740 nm Trans.
$235
In Stock
673 - 740 nm 600 - 652 nm
In Stock
25.5 x 36 mm fluorescence longpass dichroic filter
Longpass Dichroic Filter, Fluorescence, 25.5 x 36 mm, 686-745 nm Trans.
$238
In Stock
686 - 745 nm 615 - 669 nm
In Stock
25.5 x 36 mm fluorescence longpass dichroic filter
Longpass Dichroic Filter, Fluorescence, 25.5 x 36 mm, 692-760 nm Trans.
$238
In Stock
692 - 760 nm 590 - 667 nm
In Stock
25.5 x 36 mm fluorescence longpass dichroic filter
Longpass Dichroic Filter, Fluorescence, 25.5 x 36 mm, 705-780 nm Trans.
$238
In Stock
705 - 780 nm 630 - 684 nm
In Stock
25.5 x 36 mm fluorescence longpass dichroic filter
Longpass Dichroic Filter, Fluorescence, 25.5 x 36 mm, 765-860 nm Trans.
$238
In Stock
765 - 860 nm 675 - 737 nm
In Stock
25.5 x 36 mm fluorescence longpass dichroic filter
Longpass Dichroic Filter, Fluorescence, 25.5 x 36 mm, 765-860 nm Trans.
$238
In Stock
765 - 860 nm 675 - 737 nm
In Stock

Specifications

  • Type
    Dichroic Fluorescence Filter
  • Optic Size
    25.5 x 36 mm
  • Transmission
    ≥93%
  • Reflectance
    ≥95%
  • Surface Quality
    60-40 scratch-dig
  • Thickness
    1.0 mm
  • Temperature Range
    -100 to 300 °C
  • Humidity Resistance
    MIL-STD-810, Method 507.3, Procedure III, Modified to 40 cycles

Features

Superior Stabilife® Coating Technology

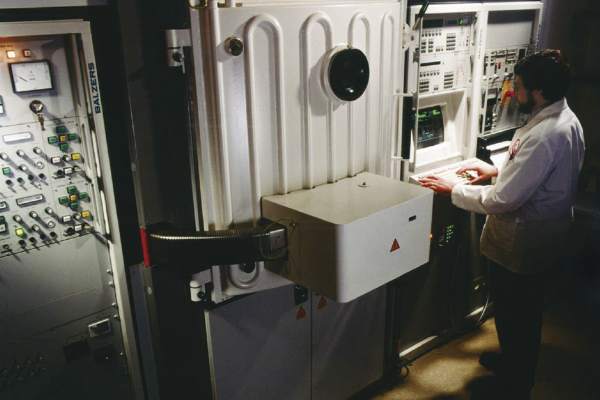

Newport's HPF™ fluorescence filters are manufactured using our patented Stabilife® coating technology. They are manufactured using two patented processes for the deposition of metal oxide thin film optical coatings; Reactive Ion Plating (RIP) and Hybrid Plasma Enhanced Deposition (HPED). Both processes yield highly dense, thin film coatings with extraordinary hardness, abrasion resistance, and adhesion to the substrate. Newport's Stabilife processes have been in full-scale production at our coating facility in Franklin, Massachusetts since the early 1990s.

Higher Film Density & Maximized Spectral Stability

For demanding applications such as fluorescence detection, wavelength stability is absolutely critical to insure dependable results. Newport's fluorescence filters with Stabilife coating technology have much higher spectral stability than competitors. One of the critical factor affecting the spectral stability of an optical coating is film density. Unlike competitor's unstabilized metal oxide thick film coating with less film density which typically contributes to environmentally induced spectral shift of 2-5%, Newport's Stabilife coatings have a much higher density and lower void ratio and are therefore less affected by water absorption. They typically exhibit total wet-to-dry shifts of less than 0.02% of wavelength.

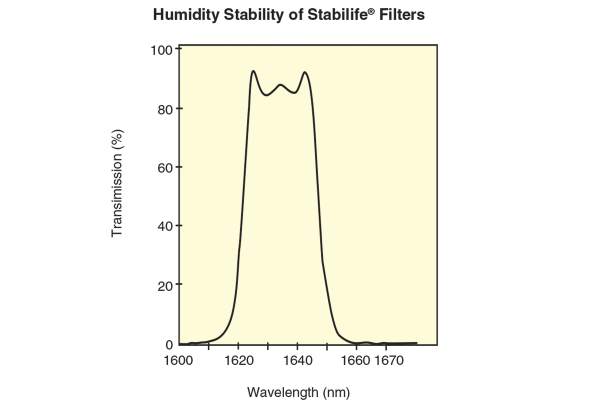

Measured transmittance scans of a Stabilife filter at 0% and 100% relative humidity. Scans are exactly overlaid as no shift is discernable at the standard scan speed for a 30nm bandwidth filter.

Minimized Spectral Shifting for Temperature Variations

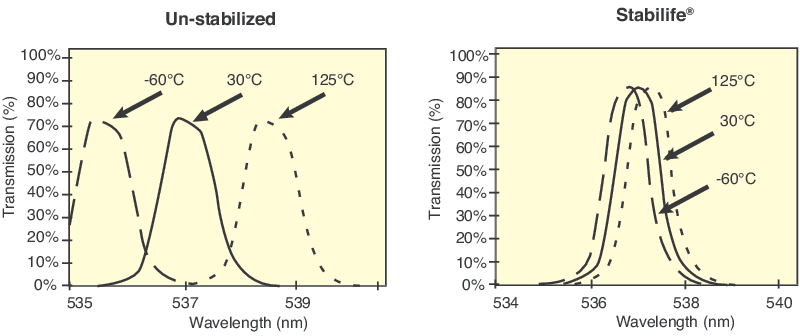

Measured temperature-induced wavelength shift of an unstabilized metal oxide ultranarrow bandpass filter compared to a Stabilife® ultra-narrow bandpass filter.

Stabilife coatings are typically 5 to 10 times less sensitive to thermal variation than un-stabilized metal oxide films as a result of film densification. Temperature change functions are a catalyst for moisture migration in thin films having a significant volume of voids. When un-stabilized films are exposed to high temperatures, moisture migrates out of film voids contributing to the wavelength change discussed earlier. The high film density and reduced permeability resulting from the Stabilife processes reduces this effect providing the maximum spectral stability available for all types of precision coatings including bandpass, dichroic, edge, notch and polarizer coatings.
