GRIN Lens Holder
GRIN Lens Holder
Model FPH-L Rod Lens Holder holds Gradient Index (GRIN) lenses up to 2 mm in diameter with a burr-free sliding clip holds the lens securely in the V-groove. It inserts into any FP Series Positioner with a detent alignment groove to engages with the positioner, preserving lens alignment.
- Mount gradient index (GRIN) lenses up to 2 mm diameter
- Lens securely held in a V-groove with a spring clip
- Compatible with FP series fiber chuck holders See All Features
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
 | FPH-LGRIN Lens Holder, 2 mm Max, FP Series Positioner | In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More |
Features
Mount up to 2 mm Diameter Gradient Index (GRIN) Lenses

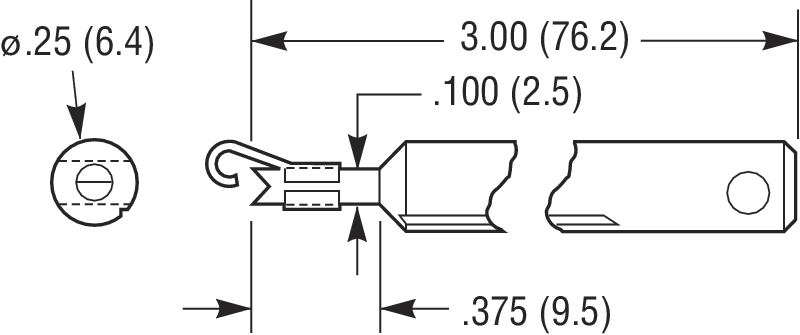

Model FPH-L Rod Lens Holder holds Gradient Index (GRIN) lenses up to 2 mm in diameter. A burr-free sliding clip holds the optic securely in the V-groove that sits in this 3 in (76.2 mm) long holder. This mounts to any FP Series Positioner with a detent alignment groove to match detent pins the positioner to keep the lens horizontal.

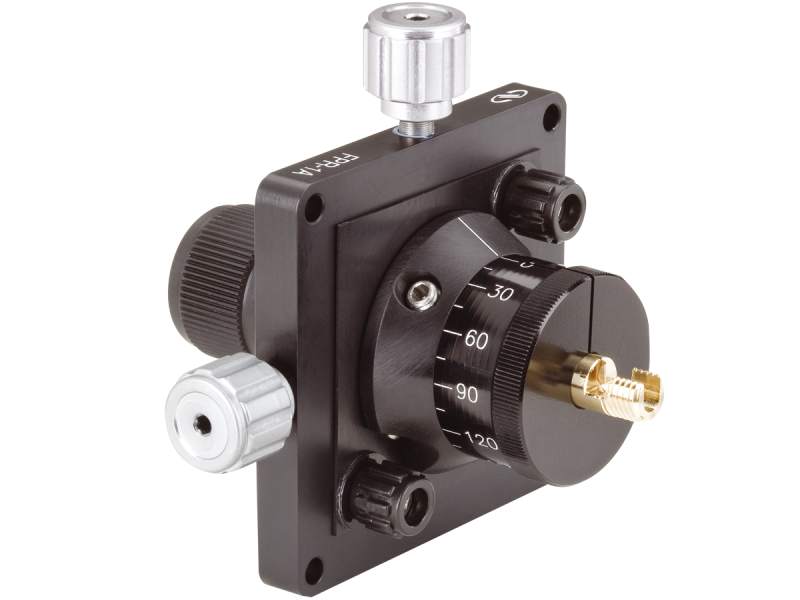

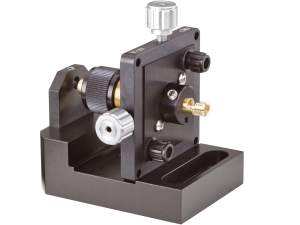

Compatible with FP Series Fiber Chuck Positioners
The FPH-L inserts into any fiber-chuck-holding FP Series Positioners which provide both linear and angular translation to align the GRIN lens.
