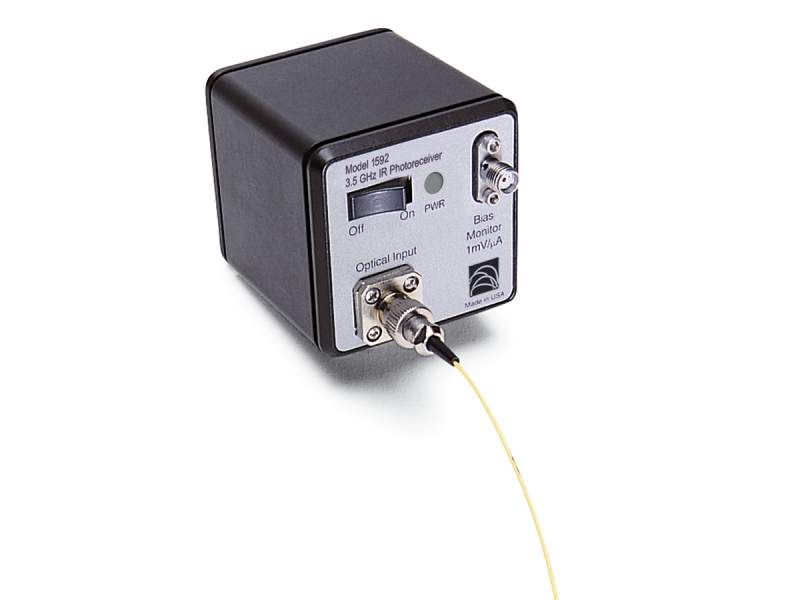

4.5 GHz Multimode Fiber-Optic Receivers

These fiber-optic receivers are ideal for fast, accurate, waveform measurements across all wavelengths from 450–1630 nm. Their clean pulse responses along with their DC coupling makes them well-suited for time-domain characterizations of 2.5-Gbit/s components and extinction-ratio measurements across popular protocols. The high gain and gradual well-behaved roll-off of the frequency response make them useful also for frequency-domain measurements.

Visible or NIR versions
62.5 µm ﬁber inputs
Switchable DC-coupled or AC-coupled output
Ultra-clean pulse response

See All Features

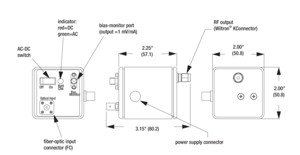

Specifications

Features

GaAs Version

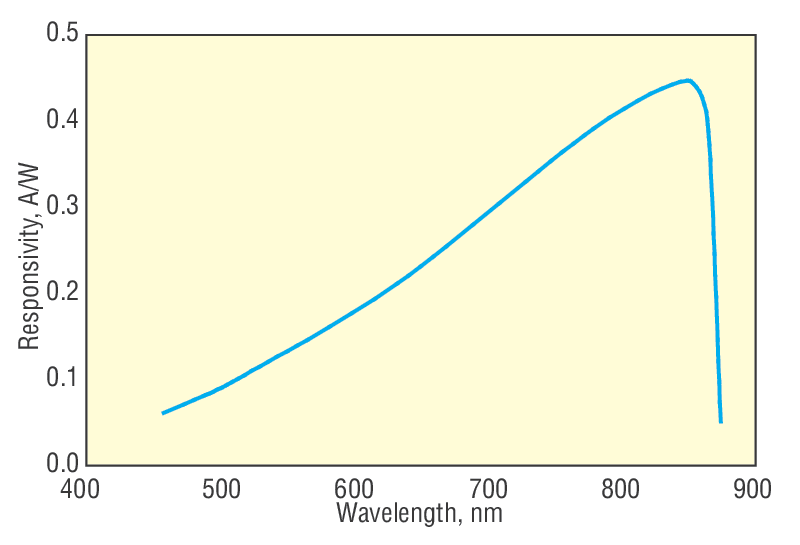

Model 1591NF utilizes a GaAs diode providing wavelength coverage from 450 to 870 nm for visible applications.

InGaAs Version

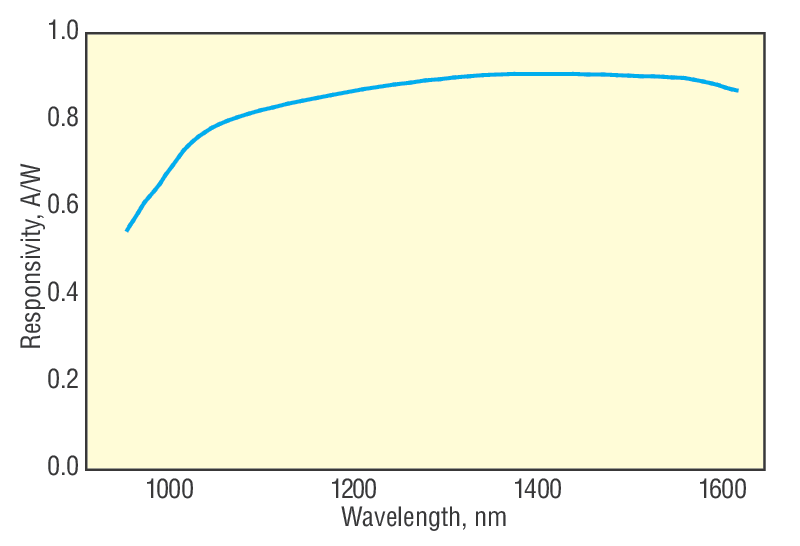

The 1592NF utilizes InGaAs providing coverage from 950 to 1630 nm for NIR applications.

62.5 µm Optical Fiber Input

These photoreceivers come standard with multimode 62.5 micron multimode fiber input, and a convenient DC-bias monitor that has a transimpedance gain of 1 mV/µA and a bandwidth of 50 kHz. Utilizing the FC connector, users simplify alignment due to the small PIN diode design.

Ultra-Clean Pulse Response

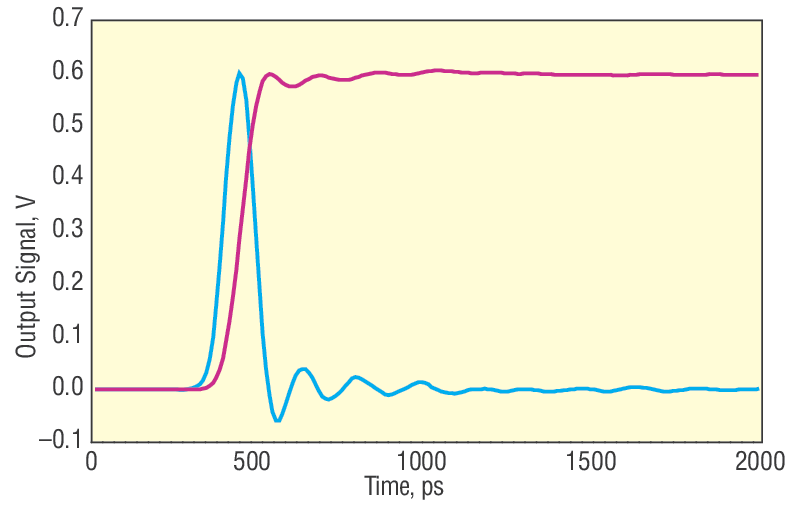

The ultra-clean pulse response along with the DC-coupling of the 159XNF series make them well-suited for time-domain characterizations of 2.5-Gbit/s components and extinction-ratio measurements across popular protocols.

Switchable DC-Coupled or AC-Coupled output

For those applications that cannot tolerate DC coupling, there is a convenient switch to convert the Photoreceiver output from DC- to AC-coupled—while still preserving the same overall photoreceiver performance.

Applications

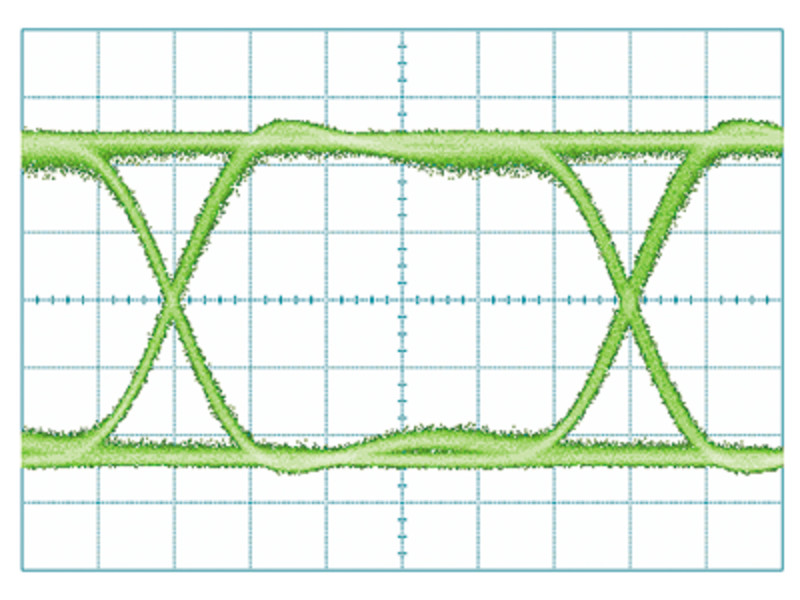

These photoreceivers are great for characterizing 2.5-Gbit/s components, including BER testing and generating eye diagrams as shown at 2.5 Gbps bit rates. They also work well in heterodyne experiments, and characterizing the frequency and/or time responses of pulsed lasers, modulators, transmitters, and other lightwave components.
