Microscope Isolation Platform, Leica LMD6500 or LMD7000, 70-120 lb.

Leica Microscope Isolation Platforms

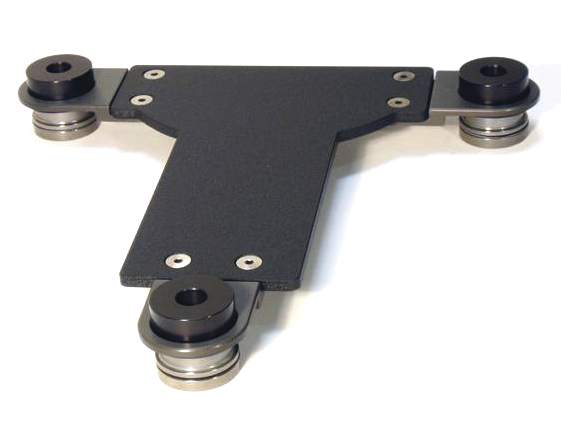

VIP3200 Series microscope platforms are the most popular vibration isolation platforms in the market tailored to the footprint of each microscope model. VIP3200-L-024B is a compact, mechanical vibration isolation platform that fits the footprint of Leica LMD6500 & LMD7000 (Payload 70-120 pounds), saving tabletop surfaces and providing effective vibration isolation and damping. With VIP3200 Series microscope platforms, the image quality of the microscope is greatly improved, delivering stable, repeable and accurate results.

Specifications

Technical Specs

Minimum Platform Load
70 lb
Load Capacity
120 lb
Horizontal Isolation, Resonance
6.3 Hz
Horizontal Amplification at Resonance
16 dB
Vertical Isolation, Resonance
6.8 Hz

Vertical Amplification at Resonance
17 dB
Microscope Model
LMD6500 or LMD7000
Weight
16 lb

Minimum Platform Load
70 lb
Load Capacity
120 lb
Horizontal Isolation, Resonance
6.3 Hz
Horizontal Amplification at Resonance
16 dB
Vertical Isolation, Resonance
6.8 Hz

Vertical Amplification at Resonance
17 dB
Microscope Model
LMD6500 or LMD7000
Weight
16 lb

Resources & Downloads

3D Product Models

Download CAD Files

Manuals

VIBe Series Isolation Platforms User's Manual(396.9 kB, PDF)

2D Product Drawings

VIP3200-L-024B-DWG.pdf(179.4 kB, PDF)
