Microscope Isolation Platform, Leica DM LM Material Control Scope
Microscope Isolation Platform, Leica DM LM Material Control Scope
Model: VIP3200-L-021
3 Weeks
Product Series Overview

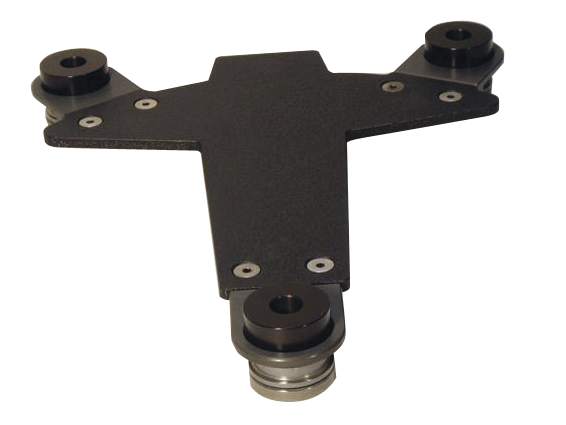

Leica Microscope Isolation PlatformsVIP3200 Series microscope platforms are the most popular vibration isolation platforms in the market tailored to the footprint of each microscope model. VIP3200-L-021 is a compact, mechanical vibration isolation platform that fits the footprint of Leica DM LM Material Control Scope, saving tabletop surfaces and providing effective vibration isolation and damping. With VIP3200 Series microscope platforms, the image quality of the microscope is greatly improved, delivering stable, repeable and accurate results.
Specifications
- Minimum Platform Load34 lb
- Load Capacity76 lb
- Horizontal Isolation, Resonance6.3 Hz
- Horizontal Amplification at Resonance16 dB
- Vertical Isolation, Resonance6.8 Hz
- Vertical Amplification at Resonance17 dB
- Microscope ModelDM LM
- Weight15 lb
Resources & Downloads
2D Product Drawings
VIP3200-L-021-DWG.pdf(239.2 kB, PDF)
