Vibration Isolation Platform, VIBe Mechanical, 18 x 24 in., 70-140 lbs.
Vibration Isolation Platform, VIBe Mechanical, 18 x 24 in., 70-140 lbs.
Model: VIP320-1824-70140
3 Weeks
Product Series Overview

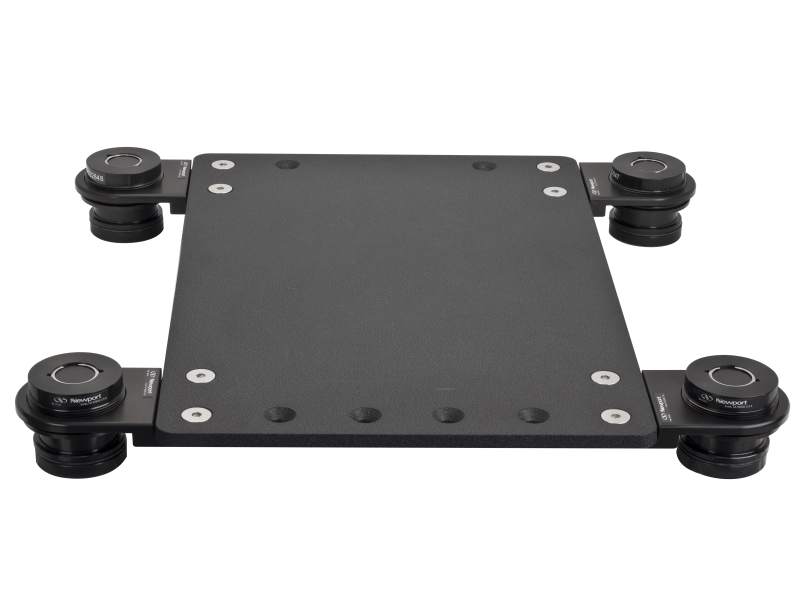

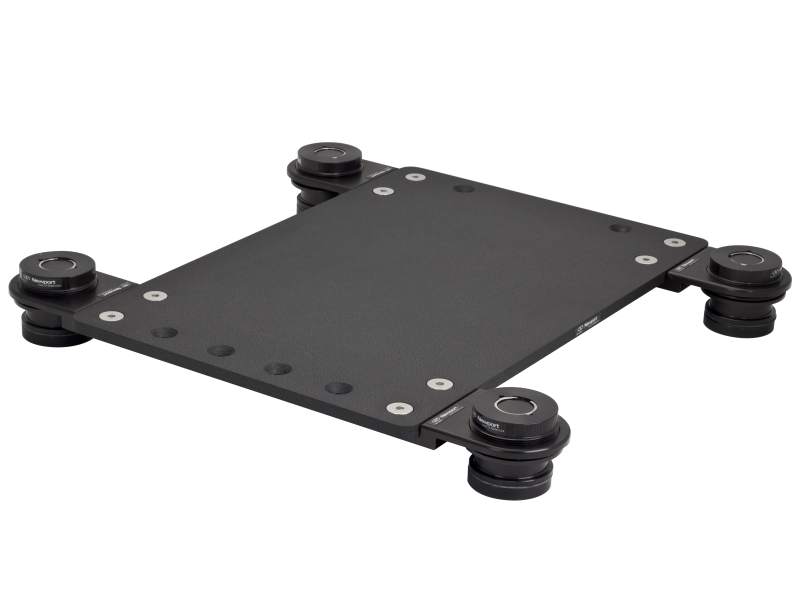

VIP320X Mechanical Vibration Isolation PlatformNewer version
The VIP320 Series vibration isolation platforms are ideal for precision applications that don't require Pneumatic isolation. Featuring passive mechanical isolators that are compact and maintenance-free, the VIP320 platforms are an affordable and effective solution for vibration sensitive instruments. The VIP320-1824-70140 is an 18 x 24 inch platform with payload range of 70 lbs (31.8 kg) to 140 lbs (63.5 kg).
Specifications
- Length24 in.
- Width18 in.
- Thickness0.38 in.
- Height1.7 in.
- Minimum Platform Load70 lb
- Load Capacity140 lb
- Horizontal Isolation, Resonance6.3 Hz
- Horizontal Amplification at Resonance16 dB
- Vertical Isolation, Resonance6.8 Hz
- Vertical Amplification at Resonance17 dB
- Weight49 lb
