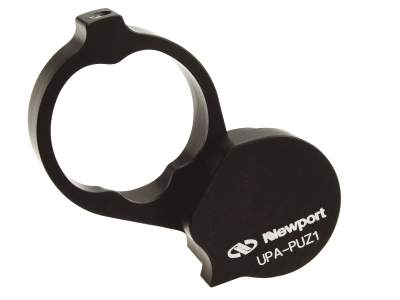

Offset Gimbal adapter, 1 inch, For U100-A Mount

Model: UPA-PUZ1

$72

In Stock

Add to List

Compare

Add to List

Overview

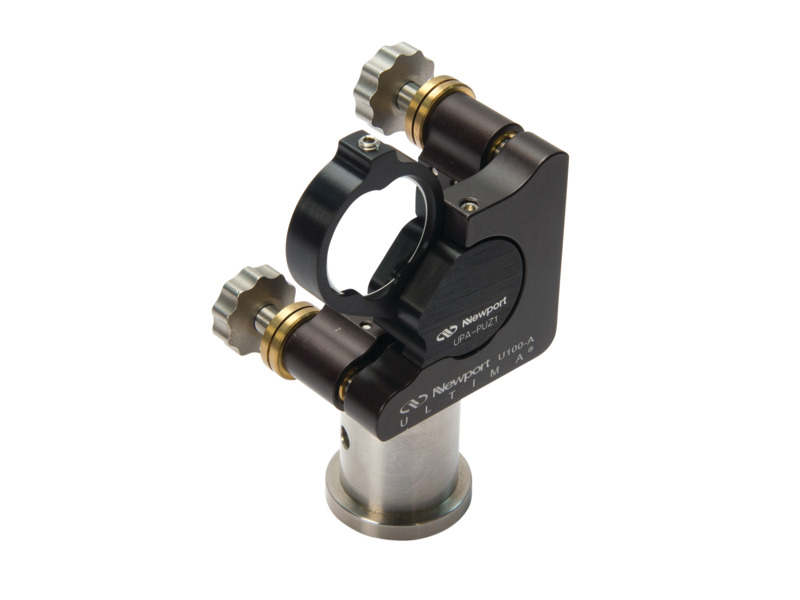

The UPA-PUZ1 Offset Gimbal Adaptor inserts into U100-A aperture mounts and provides gimbal motion (tilt without translation) by adjusting two adjacent actuators. This is accomplished by placing the center of the optic in the corner, at the intersection of the actuator axes.

Product Series Overview

Mirror Mount Size Adapters

Technical Specs

Optic Diameter

25.4 mm
Material

Anodized Aluminum

Special Features

Mounting adapter

Technical Specs

Optic Diameter

25.4 mm
Material

Anodized Aluminum

Special Features

Mounting adapter

Resources & Downloads

2D / 3D CAD Software

Download CAD Files

Drawings And Cad

UPA-PUZ1-S (85.3 kB, PDF)

Other

UPA-PUZ1_RoHS2021.pdf (680.8 kB, PDF)
