SG-44-4-ML Honeycomb Optical Breadboard

The SG-44-4-ML Scientific Grade Honeycomb Core Optical Breadboard with Microlocks has a 4 foot width, a 4 foot length, and is 4.3 inches thick with 1/4-20 holes on a 1 inch grid. The SG Series provides rock-solid stability and rigidity to support demanding research applications. It demonstrates an outstanding <±0.004 in. flatness over two square feet. The SG Breadboard offers a 3/16 in. ferromagnetic steel surface, enhanced damping, sealed holes, steel honeycomb core, and microlocks. This means the SG Series still out-performs other manufacturers’ top-of-the-line breadboards.

Specifications

Technical Specs

Broadband Damping
Constrained layer core, damped working surface and composite edge finish
Width
48 in.
Length
48 in.
Thickness
4.3 in.
Working Surface
3/16 in. thick 400 Series ferromagnetic stainless steel
Surface Flatness
±0.004 in. over 2 ft. square
Bottom Skin Material
0.134 in. thick carbon steel
Microlocks
Yes
Number of Microlocks
5

Mounting Holes
1/4-20
Mounting Hole Type
Cut (not rolled) threads with countersink
Mounting Hole Pattern
1.0 in. grid
Mounting Hole Borders
0.5 in. borders
Hole Sealing Type
Easy clean non-corrosive high impact polymer conical cup, 0.75 in. deep
Core Design
Trussed honeycomb, vertically bonded closed cell construction, 0.010 in. Steel sheet materials, 0.030 in. triple core interface
Weight
313 lb

Broadband Damping
Constrained layer core, damped working surface and composite edge finish
Width
48 in.
Length
48 in.
Thickness
4.3 in.
Working Surface
3/16 in. thick 400 Series ferromagnetic stainless steel
Surface Flatness
±0.004 in. over 2 ft. square
Bottom Skin Material
0.134 in. thick carbon steel
Microlocks
Yes
Number of Microlocks
5

Mounting Holes
1/4-20
Mounting Hole Type
Cut (not rolled) threads with countersink
Mounting Hole Pattern
1.0 in. grid
Mounting Hole Borders
0.5 in. borders
Hole Sealing Type
Easy clean non-corrosive high impact polymer conical cup, 0.75 in. deep
Core Design
Trussed honeycomb, vertically bonded closed cell construction, 0.010 in. Steel sheet materials, 0.030 in. triple core interface
Weight
313 lb

Resources & Downloads

Literature

Microlocks(451.7 kB, PDF)

2D Product Drawings

SG Series Breadboard-Drawing.pdf(243.6 kB, PDF)

Related Products

Accessories

Description	Compatibility	Avail.	Price

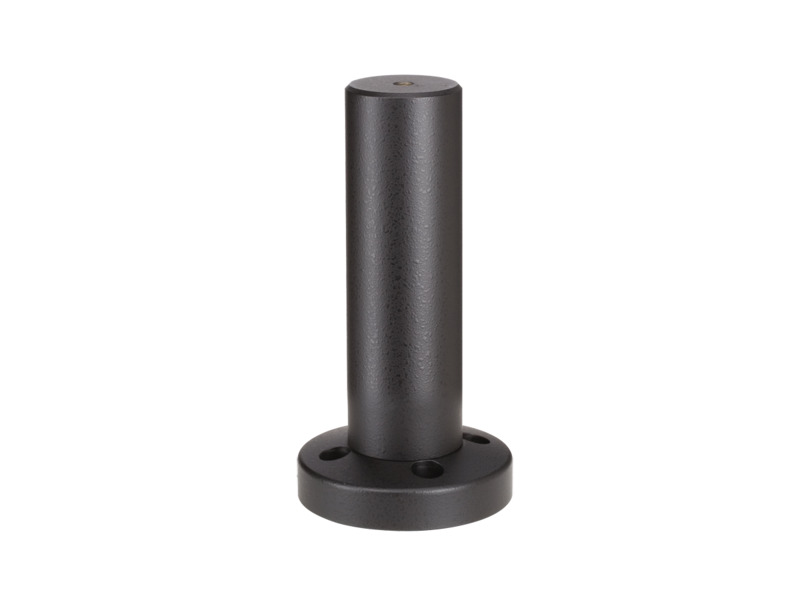

XP-5Support Rod, Microlock Breadboard, 5 in. Height, 1.56 in. Diameter, 1/4-20	IMPERIAL	In Stock	$148

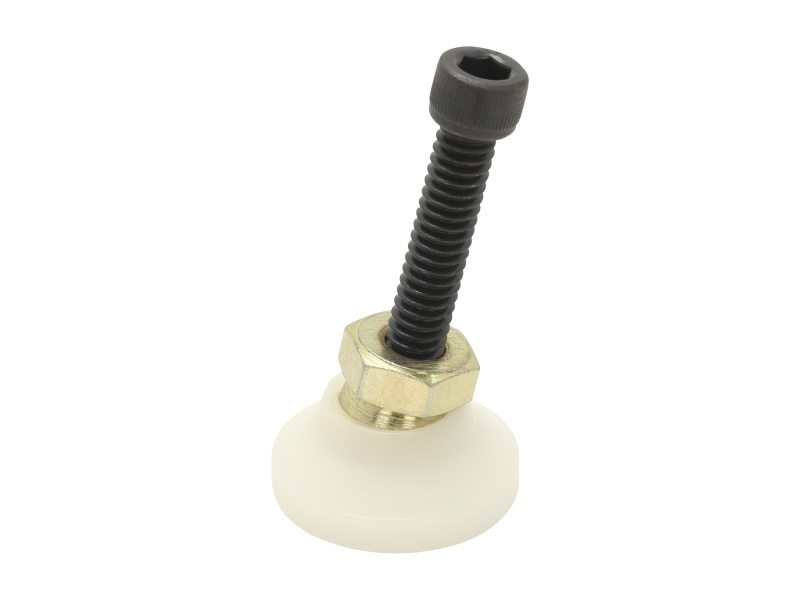

Microlock-FTLeveling Foot, 1/4-20 Thread, Microlock	UNIVERSAL	4 Weeks	$27

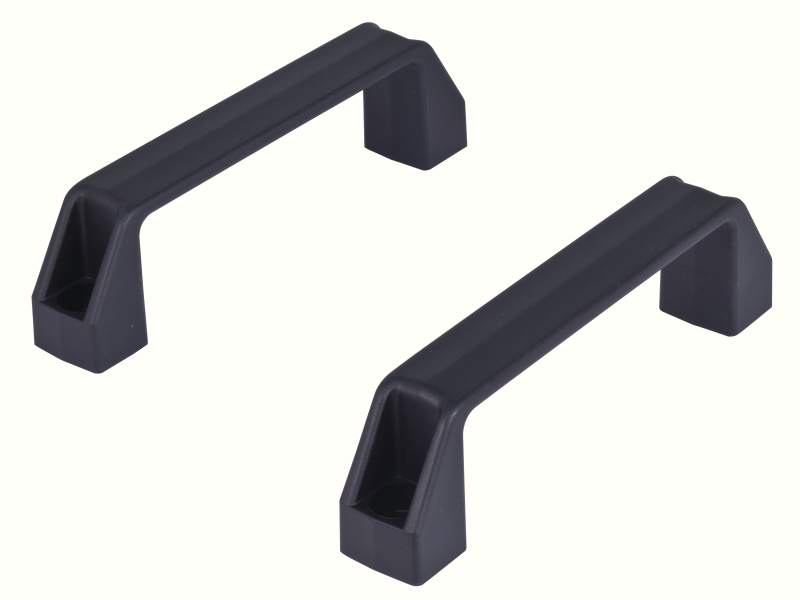

SA2-HNDLHandles, Optical Breadboard, 2 Piece Set, SA2 Series	UNIVERSAL	In Stock	$40

Sparepart

Description	Compatibility	Avail.	Price

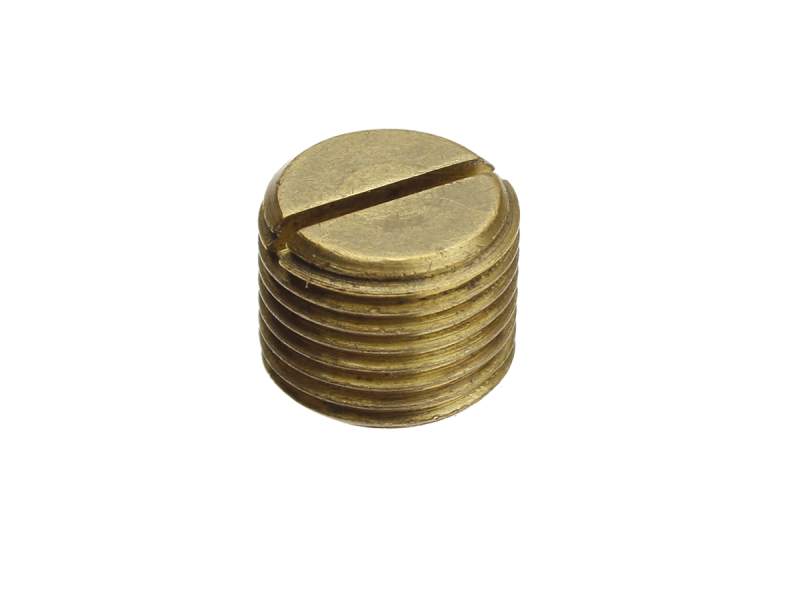

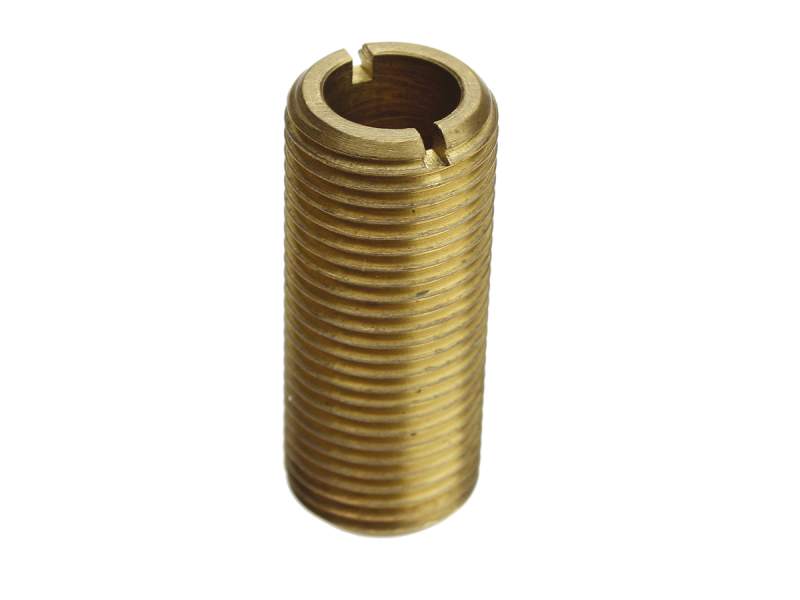

4646Microlock Insert, Spare	UNIVERSAL	In Stock	$23

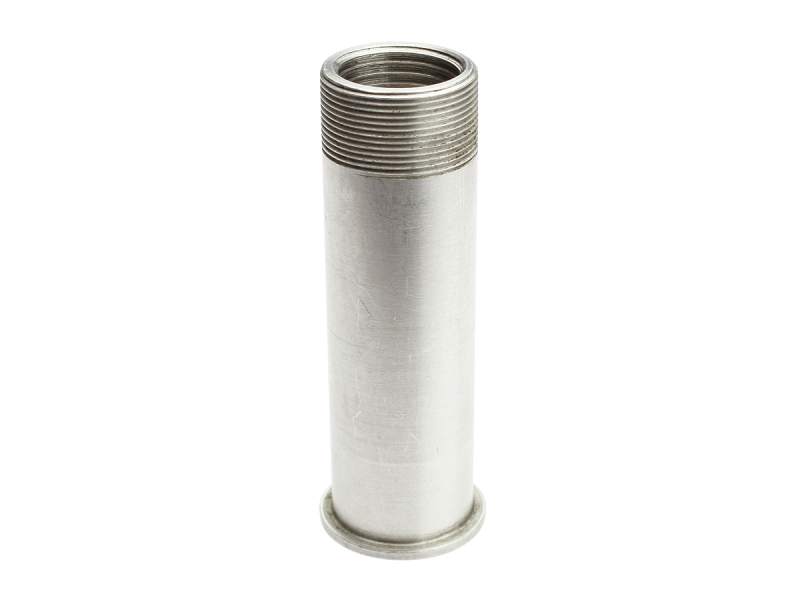

6749-5Microlock Sleeve, 4 in. Thick Optical Breadboards	UNIVERSAL	Contact Us	$101
4647Microlock Cap, Spare	UNIVERSAL	In Stock	$14.60

Similar

	Compare	Description	Compatibility	Drawings, CAD & Specs	Avail.	Price
		SG-44-2-MLHoneycomb Optical Breadboard, 4.8 mm Skin, 48 x 48 x 2.3 in., 1/4-20, Microlocks	IMPERIAL		4 Weeks	$3,745
		SG-44-4Honeycomb Optical Breadboard, 4.8 mm Skin, 48 x 48 x 4.3 in., 1/4-20	IMPERIAL		4 Weeks	$3,604

Compatible

	Compare	Description	Compatibility	Drawings, CAD & Specs	Avail.	Price

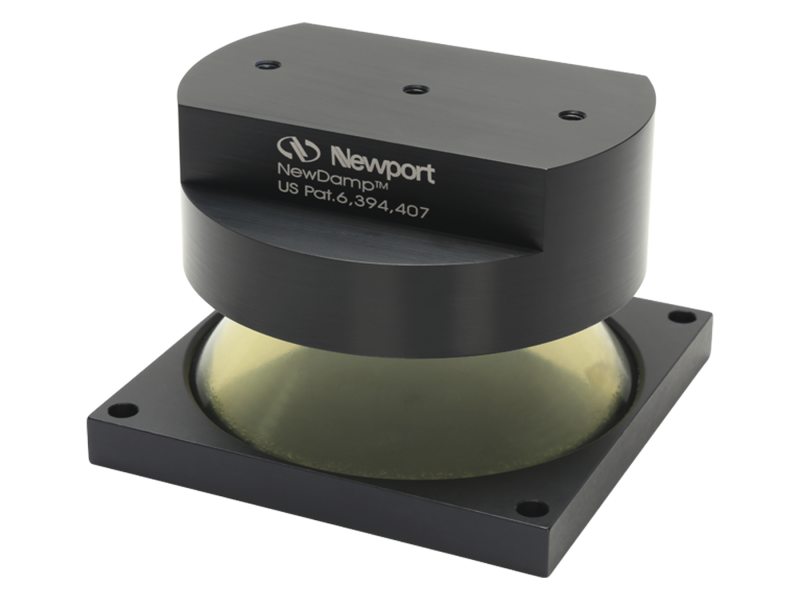

		ND30-AElastomeric Isolation Mount, NewDamp, 70-300 lb., Microlock Compatible	IMPERIAL		Contact Us	$614

Honeycomb Optical Breadboard, 4.8 mm Skin, 48 x 48 x 4.3 in., 1/4-20, Microlocks

Model: SG-44-4-ML
