Optical Post Clamp, Right-Angle, 0.5 in. to 6 mm Rod

Optical Post Clamp, Right-Angle, 0.5 in. to 6 mm Rod

Model: RA-0506

$22

4 Weeks

Compare

Add to List

Product Series Overview

Post-Joining Angle Clamps

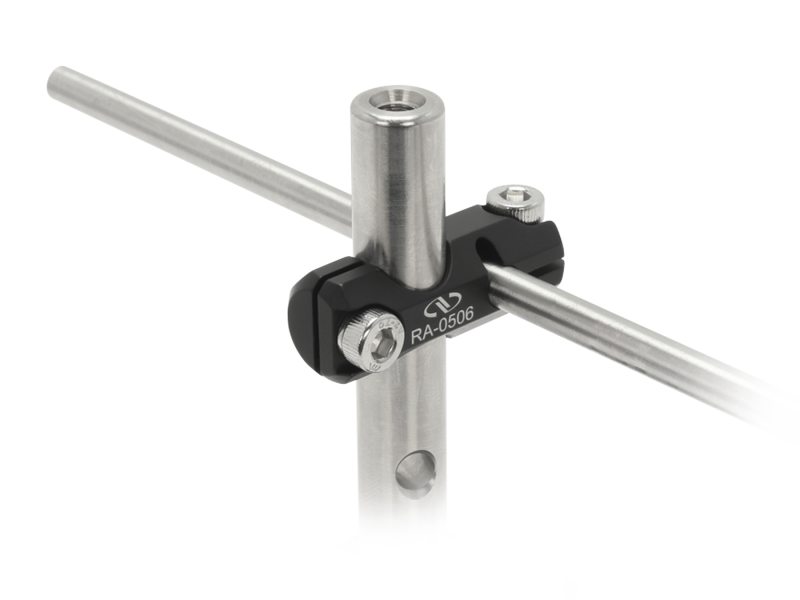

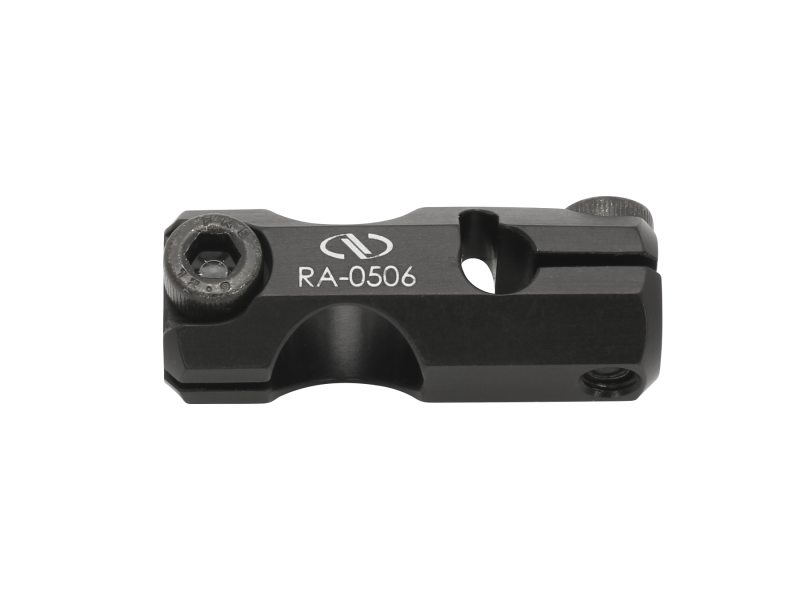

The RA-0506 optical post clamp is used to mount a 0.5 inch post and 6mm rod at a 90 degree angle. Each post is clamped with a secure flexure mechanism and both hexes can be tightened with a M4 or 5/32 tool.

Specifications

Technical Specs

Type

Right-Angle Post Clamp
Post Joining Angle

90°
Post Diameter

12.7 to 6.0 mm

Pack Quantity

1

Type

Right-Angle Post Clamp
Post Joining Angle

90°
Post Diameter

12.7 to 6.0 mm

Pack Quantity

1

Resources & Downloads

2D / 3D CAD Software

Download CAD Files

Drawings And Cad

RA-0506.pdf (35.3 kB, PDF)

Other

MKS RoHS2-2021 Flexure Post Clamp Adaptors Family.pdf (698.3 kB, PDF)
