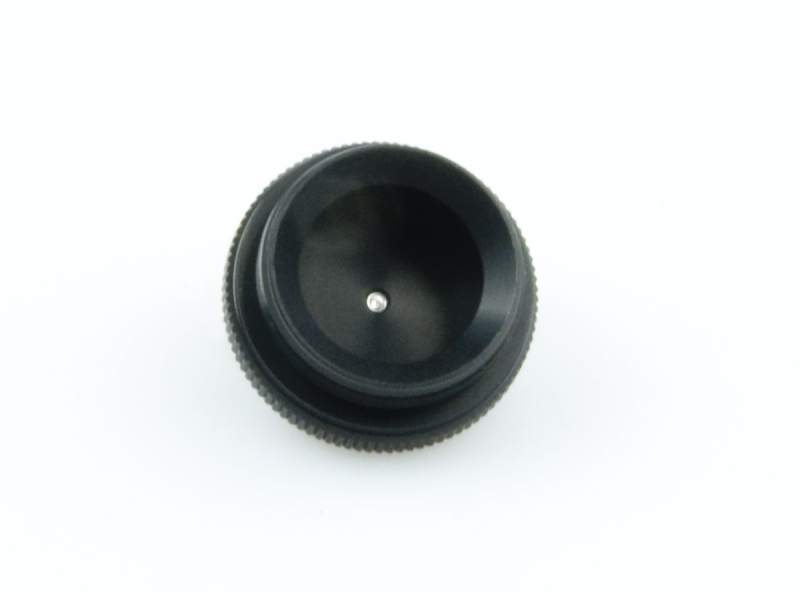

Pinhole, Platinum Iridium, 20 µm, RMS Thread

The PNH-20 Mounted Pinhole works with the SB18YZ Pinhole Positioners. It is made from ultra-thin platinum iridium, and has a 20 µm aperture pinhole. This mounted version has a 20.25 RMS male thread to fit into the pinhole positioner.
Resources & Downloads
2D Product Drawings
PINHOLED-S(173.1 kB, PDF) RAILOPTI DWG-S(110.7 kB, PDF)
Other
PNH-20_ROHS2-2021.pdf(278.6 kB, PDF)
