Portable Laser Safety Barrier, 4 Panels
Model: PLSP-04
Product Series Overview

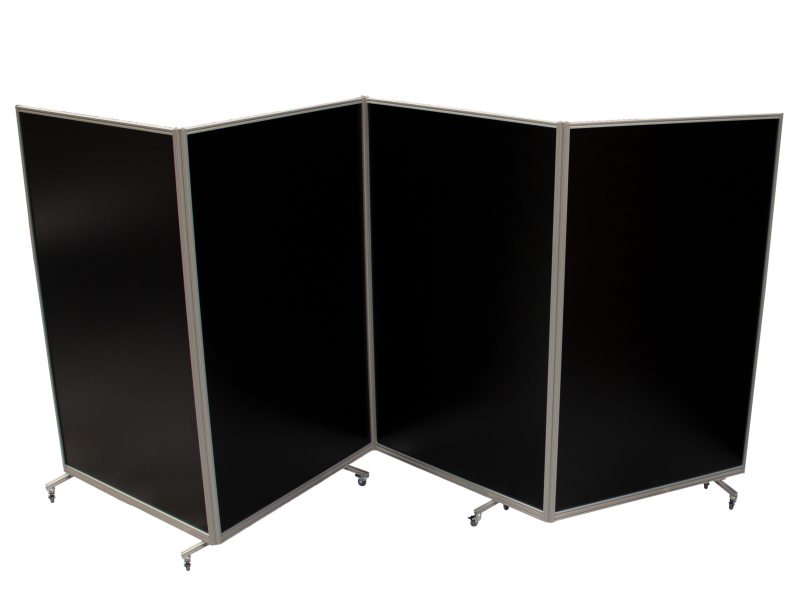

Laser Safety BarriersNewport's 4-Panel Portable Laser Safety Barrier is free-standing and foldable for ease of use and storage. Laser rated to 2500 W/cm2 for 100 seconds, these panels are constructed with heavy duty extruded aluminum frame with special coating that helps block and absorb scattered and direct laser radiation. Its lightweight design comes with wheels for maximum mobility. The 360° hinge design ensures that the panels are light tight in any position. It is a great alternative to laser curtains.

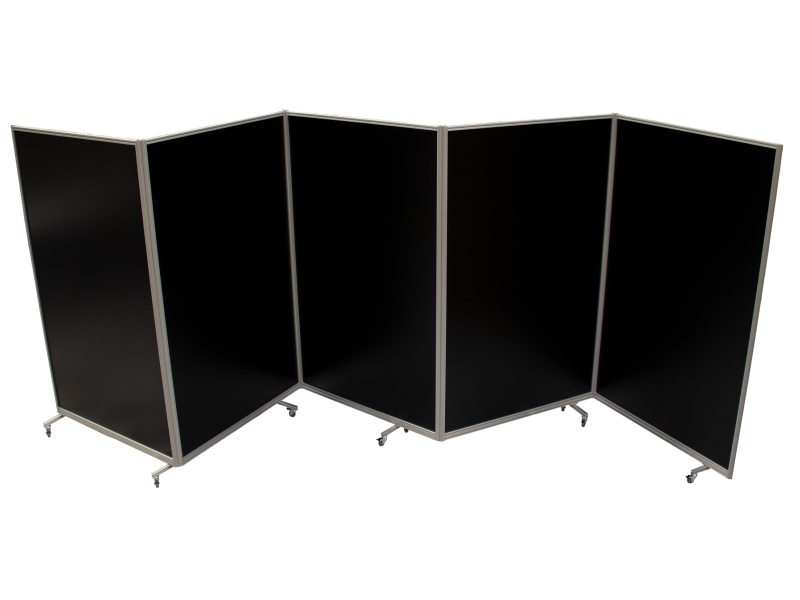

Versatile Laser Safety Barriers
The foldable laser safety panel systems are ideal for applications that require mobile and flexible convergence. The unique 360° hinges ensure that the panels are light tight in any position according to your needs.
Fold And Move With Ease
The laser safety barriers are foldable for ease of use and storage. They are fully assembled with wheels to move to different locations with ease.
Specifications
- MaterialTwo layers of aluminum bonded with corrugated polyallomer core
- Height83 in.
- Width197 in.
- Thickness0.232 in.
- Maximum Irradiance1,000 W/cm2 @ 315-1050 nm
2,500 W/cm2 @ >1050-1400 nm
10,000 W/cm2 @ 10600 nm
(Tested for 100 sec at a 1 mm beam diameter)
Resources & Downloads
2D Product Drawings
Barrier_foldable_drawing.pdf(174.2 kB, PDF)
