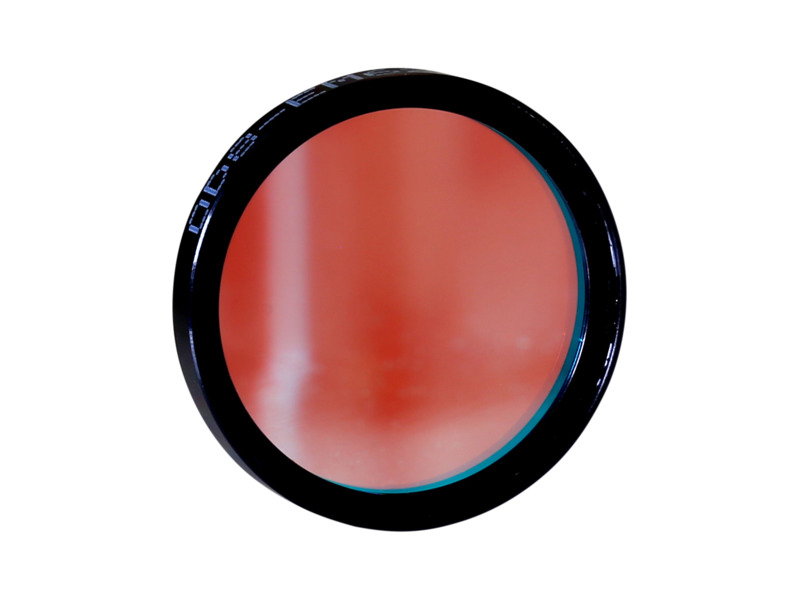

ODiate® Emission Filter, 25.0 mm, 629 nm CWL, 52 nm FWHM

The OD8-EM629-52-B Emission Filter is specified for emission of mCherry / TexasRed and supports similar alternative fluorophores, designed in conjunction with and . The filter is manufactured to provide maximum signal and sensitivity delivering exceptionally high passband transmission ≥ 96% avg for 629 nm CWL and 52 nm FWHM and enhanced blocking ≥ OD10 avg over the corresponding excitation passband.

In addition to mCherry & TexasRed the following fluorophores are also compatible with this set:

5-ROX, Abberior CAGE 590 (uncaged), Abberior STAR 580, Abberior STAR ORANGE, Alexa Fluor^® 568, Alexa Fluor^® 594, AsRed2, ATTO 590, ATTO RHO101, ATTO RHO12, ATTO Thio12, BO-PRO-3, BOBO-3, BODIPY^® TR-X, BODIPY^® TR-X (Phallacidin), Calcium Crimson, CellTrace BODIPY^® TR, CellTracker Red CMTPX, CF 583, CF 594, Cresyl Violet perchlorate, Crystal Violet (glycerol), FluoSpheres^® Red, FusionRed, HCS LipidTOX Red Neutral Lipid Stain, HCS LipidTOX Red Phospholipidosis, Katushka2S, LIVE/DEAD^® Fixable Red Dead Cell Stain, MitoTracker^® Red, mKate2, mPlum, mRFP1, Nile red, Nile red (phospholipid), PromoFluor-594, ReAsH, Spectrum Red, Texas Red^® (Dextran), Texas Red™ DHPE, Texas Red^® R-PE, Texas Red^®-X, TurboFP602, TurboFP635, TurboFP650, X-rhod-1,X-Rhod-5F.

Optimized Coatings and Engineering Expertise

Newport pushed the boundaries with the introduction of our ODiate Fluorescence Filter Sets, to allow customers to fully optimize their system performance. Our expert engineering team has been involved from the first stage of design to ensure that we exceed your requirements and continues through the entire process of continual production deliveries.

Environmental Stability and Physical Durability

The coating systems used to produce ODiate filters use a dense sputtering process to provide robust environmental reliability to meet the highest demands for thin-film coatings. The resulting highly durable coatings meet or exceed testing procedures including humidity, thermal shock, adhesion, chemical resistance, and moderate abrasion per U.S. Military and international standards.

Specifications

Technical Specs

Type
Fluorescence Emission Filter
Fluorophores
mCherry & TexasRed
Material
BOROFLOAT^® 33
Center Wavelength
629 nm
FWHM
52.3 nm
Angle of Incidence
0°±5°
Cone Half-angle
<7°
Size
Ø25.0 mm
Size Tolerance
+0.0/-0.1 mm
Thickness
2.0 mm (substrate)
3.5 mm (housing)
Thickness Tolerance
±0.1 mm
Surface Quality
60-40 scratch-dig

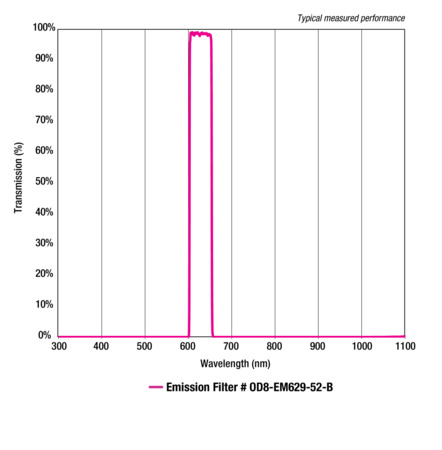

Transmission
≥ 96% avg, 606-652 nm
Parallelism
≤10 arc seconds
Humidity Resistance
Per MIL-STD-810E, method 507.3, procedure III, modified to 5 cycles
Enhanced Excitation Blocking Range
≥ OD10 avg, 543-586 nm (verified as ≥ OD8 avg)
Blocking Range #1
≥ OD6 avg, 300-593.9 nm
Blocking Range #2
≥ OD4 @ 596 nm
Blocking Range #3
≥ OD6 avg, 671.6-900 nm
Blocking Range #4
≥ OD3 avg, 900-1100 nm
Temperature Range
-50 to 100°C

Type
Fluorescence Emission Filter
Fluorophores
mCherry & TexasRed
Material
BOROFLOAT^® 33
Center Wavelength
629 nm
FWHM
52.3 nm
Angle of Incidence
0°±5°
Cone Half-angle
<7°
Size
Ø25.0 mm
Size Tolerance
+0.0/-0.1 mm
Thickness
2.0 mm (substrate)
3.5 mm (housing)
Thickness Tolerance
±0.1 mm
Surface Quality
60-40 scratch-dig

Transmission
≥ 96% avg, 606-652 nm
Parallelism
≤10 arc seconds
Humidity Resistance
Per MIL-STD-810E, method 507.3, procedure III, modified to 5 cycles
Enhanced Excitation Blocking Range
≥ OD10 avg, 543-586 nm (verified as ≥ OD8 avg)
Blocking Range #1
≥ OD6 avg, 300-593.9 nm
Blocking Range #2
≥ OD4 @ 596 nm
Blocking Range #3
≥ OD6 avg, 671.6-900 nm
Blocking Range #4
≥ OD3 avg, 900-1100 nm
Temperature Range
-50 to 100°C
