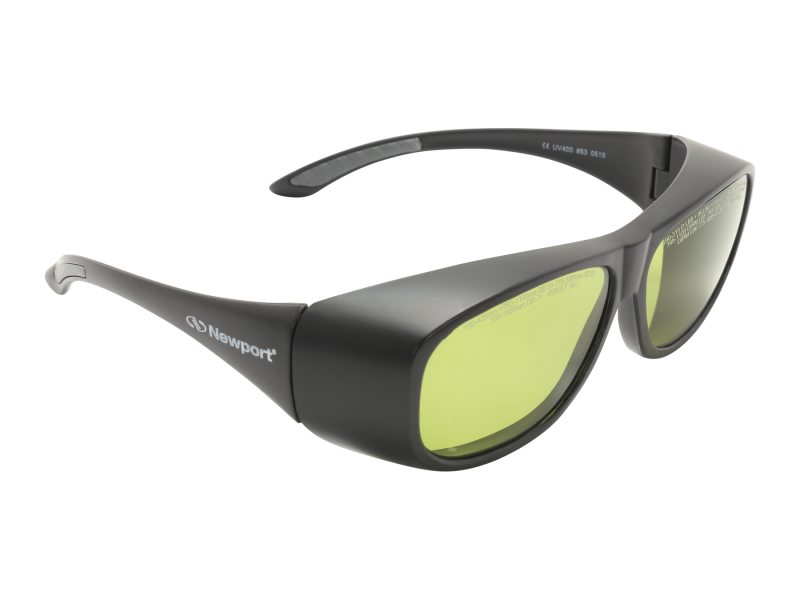

Rimmed Laser Safety Glasses, 800 nm Diode and YAG Laser Wavelengths

Universal Rimmed Frame Laser Safety Glasses

The N-ML1-53 Laser Safety Glasses are for 800 nm diode and YAG laser wavelengths. It has the Universal Rimmed frame with form-fitting green color polycarbonate lenses. 45% VLT (visible light transmission). The Rimmed frame has unmatched protection, comfort and style, offering sleek styling that fits comfortably over prescription frames or can be worn as a stand-alone spectacle. This model is CE certified. Meets ANSI Z136.1 and EN207.

Similar to Honeywell models 31-23162, G3982.

Glasses Designed to Offer Complete Protection

The advanced filter technology implemented in these glasses ensures maximum visibility with unsurpassed attenuation at specific laser wavelengths. The transmission curve for each model of laser safety glasses is available by clicking on the model number in the order or specification table.

Transmission curve for model N-FG1-53 shown.

Rimmed Frame Design for Durability

These glasses feature a rimmed frame design. This design ensures high durability and ample coverage.

Fits Over a Majority of Prescription Eyewear

The design of these goggles allow them to comfortably fit over most prescription eyewear. The last number in the model numbers indicate the frame style. The dimensions of the Style #53 is 146 mm x 145 mm x 50 mm (frame width x temple length x frame height), and #55 is 145 mm x 142 mm x 45 mm.

Specifications

Technical Specs

Frame Style
Universal Rimmed
Visible Light Transmission
45%
Filter Color
Green
Optical Density
OD5+ @ 190-420 nm
OD5+ @ 765-1100 nm
OD6+ @ 775-1085 nm
OD7+ @ 790-1080 nm
Laser Type
800 nm diode
YAG
Lens Material
Polycarbonate

CE
Yes
EN207
190–315 nm (D LB8 + IR LB4)
>315–420 nm (DIR LB5)
>420–445 nm (DIR LB4)
765–1100 nm (DIRM LB5)
775–1085 nm (D LB5 + IRM LB6)
790–1080 nm (D LB6 + IRM LB7)
950–1085 nm (DIRM LB6)
Dimensions
146 mm x 145 mm x 50 mm (frame width x temple length x frame height)

Frame Style
Universal Rimmed
Visible Light Transmission
45%
Filter Color
Green
Optical Density
OD5+ @ 190-420 nm
OD5+ @ 765-1100 nm
OD6+ @ 775-1085 nm
OD7+ @ 790-1080 nm
Laser Type
800 nm diode
YAG
Lens Material
Polycarbonate

CE
Yes
EN207
190–315 nm (D LB8 + IR LB4)
>315–420 nm (DIR LB5)
>420–445 nm (DIR LB4)
765–1100 nm (DIRM LB5)
775–1085 nm (D LB5 + IRM LB6)
790–1080 nm (D LB6 + IRM LB7)
950–1085 nm (DIRM LB6)
Dimensions
146 mm x 145 mm x 50 mm (frame width x temple length x frame height)
