Rimmed Safety Glasses, PDT, Dye, Ruby, Krypton, Excimer, and CO2 Laser Wavelengths

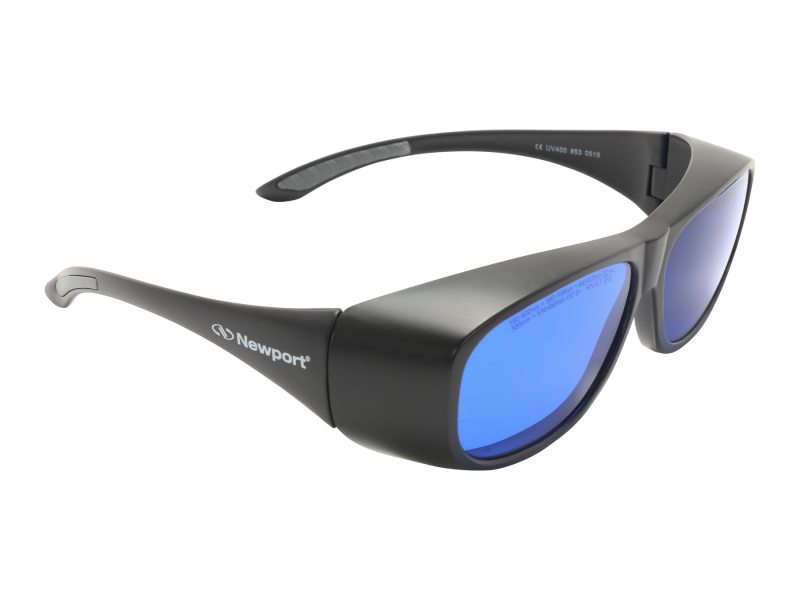

Universal Rimmed Frame Laser Safety Glasses

The N-DY2-53 Safety Glasses are for PDT, Dye, Ruby, Krypton, Excimer, and CO₂ laser wavelengths. It has a Universal Rimmed Frame with blue color polycarbonate lenses. 14% VLT (visible light transmission). The Rimmed frame has unmatched protection, comfort and style, offering sleek styling that fits comfortably over prescription frames or can be worn as a stand-alone spectacle. This model is CE certified. Meets ANSI Z136.1 and EN207.

Glasses Designed to Offer Complete Protection

The advanced filter technology implemented in these glasses ensures maximum visibility with unsurpassed attenuation at specific laser wavelengths. The transmission curve for each model of laser safety glasses is available by clicking on the model number in the order or specification table.

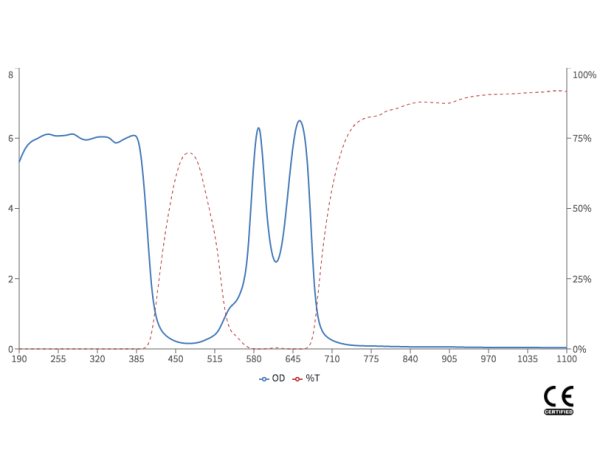

Transmission curve for model N-FG1-53 shown.

Rimmed Frame Design for Durability

These glasses feature a rimmed frame design. This design ensures high durability and ample coverage.

Fits Over a Majority of Prescription Eyewear

The design of these goggles allow them to comfortably fit over most prescription eyewear. The last number in the model numbers indicate the frame style. The dimensions of the Style #53 is 146 mm x 145 mm x 50 mm (frame width x temple length x frame height), and #55 is 145 mm x 142 mm x 45 mm.

Specifications

Technical Specs

Frame Style
Universal Rimmed
Visible Light Transmission
14%
Filter Color
Blue
Optical Density
OD 5+ @ 190–400 nm
OD5+ @ 580–590 nm
OD 6+ @ 585nm
OD5+@ 645–670 nm
OD6+ @ 650–665 nm
Laser Type
PDT, Dye
Ruby
Krypton
Excimer
CO₂
Lens Material
Polycarbonate

CE
Yes
EN207
580–590 + 645–670 nm (DIR LB5)
585 + 650–665nm (D LB5 + IR LB6)
Dimensions
146 mm x 145 mm x 50 mm (frame width x temple length x frame height)

Frame Style
Universal Rimmed
Visible Light Transmission
14%
Filter Color
Blue
Optical Density
OD 5+ @ 190–400 nm
OD5+ @ 580–590 nm
OD 6+ @ 585nm
OD5+@ 645–670 nm
OD6+ @ 650–665 nm
Laser Type
PDT, Dye
Ruby
Krypton
Excimer
CO₂
Lens Material
Polycarbonate

CE
Yes
EN207
580–590 + 645–670 nm (DIR LB5)
585 + 650–665nm (D LB5 + IR LB6)
Dimensions
146 mm x 145 mm x 50 mm (frame width x temple length x frame height)
