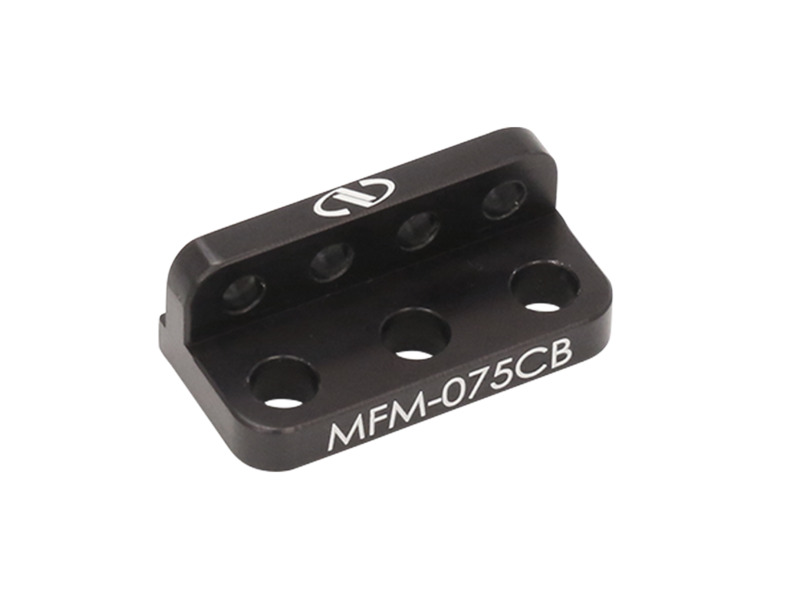

Mounting Bracket, MFM-075C Clear Edge Flexure Industrial Optical Mount

Mounting Bracket, MFM-075C Clear Edge Flexure Industrial Optical Mount

Model: MFM-075CB

$54

In Stock

Compare

Add to List

Product Series Overview

Mirror Mount Mounting Adapters

The MFM-075CB Mounting Base provides simple mounting and solid attachment to flat surfaces. The MFM-075CB positions the optical axis height of 0.75". Compatible with MFM-075CL and MFM-075CR.

Specifications

Technical Specs

Material

Anodized Aluminum
Thread Type

4-40 and 8-32 CLR

Use

MFM-075Cx

Material

Anodized Aluminum
Thread Type

4-40 and 8-32 CLR

Use

MFM-075Cx

Resources & Downloads

2D / 3D CAD Software

Download CAD Files

Drawings And Cad

MFM-075CB Drawing (196.1 kB, PDF)

Other

MKS EU ROHS3 - MFM series Base (649.2 kB, PDF)

Related Products

Compatible

	Compare	Description	Compatibility	Drawings, CAD & Specs	Avail.	Price
		MFM-075CR Industrial Optical Mount, Flexure, 0.75 in., Clear Edge, Locking Adjusters	IMPERIAL		In Stock	$161
		MFM-075CL Industrial Optical Mount, Flexure, 0.75 in., Clear Edge, Locking Adjusters, Left-Handed	IMPERIAL		In Stock	$161
