Honeycomb Optical Breadboard, 3.4 mm Skin, 24 x 24 x 2.3 in., 1/4-20

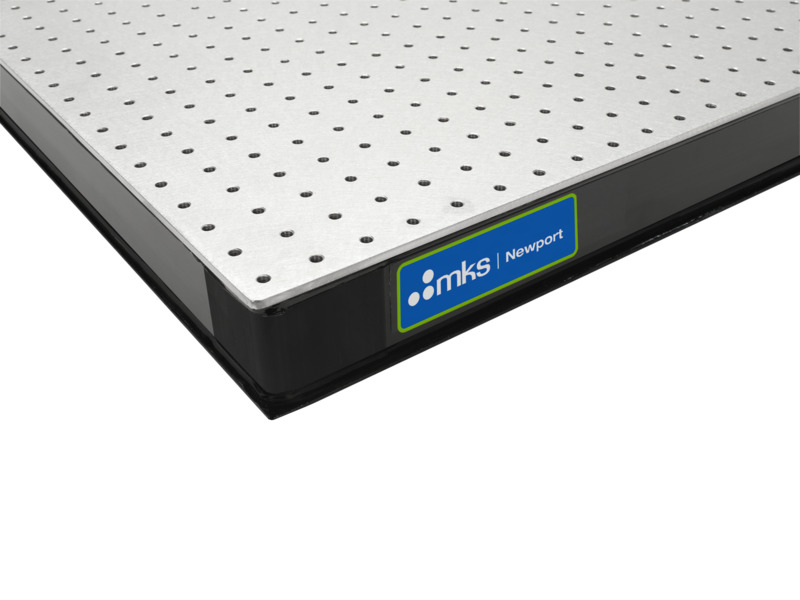

The IG-22-2 Industrial Grade Honeycomb Core Optical Breadboard has a 2 foot width, a 2 foot length, and is 2.3 inches thick with 1/4-20 holes on a 1 inch grid. The IG Series has become the standard for industrial applications not requiring the extremely high rigidity of the Newport RG and SG Series products. It supports a variety of industrial and biomedical systems for use in production or quality measurement. The stainless steel top features a precision tapped sealed hole grid to allow system configurability. The trussed core honeycomb design offers excellent rigidity and damping. Damped side panels and top further reduce vibration noise problems.
Specifications
- Broadband DampingConstrained layer core, damped working surface and composite edge finish
- Width24 in.
- Length24 in.
- Thickness2.3 in.
- Working Surface0.134 in. thick 400 Series ferromagnetic stainless steel
- Surface Flatness±0.006 in. over 2 ft. square
- Bottom Skin Material0.134 in. thick carbon steel
- MicrolocksNo
- Mounting Holes1/4-20
- Mounting Hole TypeCut (not rolled) threads with countersink
- Mounting Hole Pattern1.0 in. grid
- Mounting Hole Borders0.5 in. borders
- Hole Sealing TypeEasy clean non-corrosive high impact polymer conical cup, 0.75 in. deep
- Core DesignTrussed honeycomb, vertically bonded closed cell construction, 0.010 in. Steel sheet materials, 0.030 in. triple core interface
- Weight61 lb
Resources & Downloads
Other
IG-22-2 RoHS Certificate(278.7 kB, PDF)
