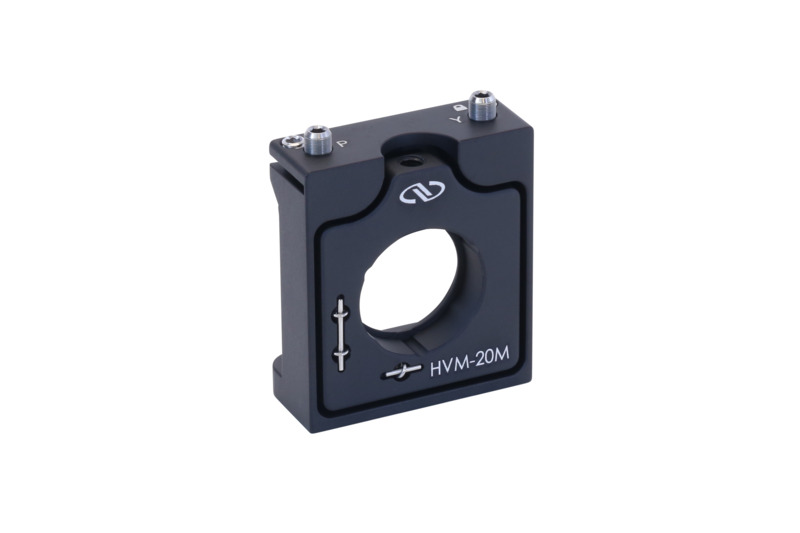

Mirror Mount, Industrial, Vertical Drive, Front Load, 20 mm, 2 Locking Allen-Keys
The HVM-20Mi is an Industrial Vertical Drive Kinematic Optical Mount specifically made for 20 mm optics. It has a compact, stable design for easy top adjustment away from the beam path. Optics can be front-loaded, and secured with a set screw to ensure the back face of the optic is always in the same location regardless of its thickness. The mount has standard features such as a 20 mm optical axis height, 100 TPI locking actuators, and can fit 4mm – 9.53mm thick optics. The HVM-M20i is designed with several mounting options including #8 (M4) clearance holes for simple mounting via cap screws.
Keep Your Hands Out of Harms Way
Top adjust mounts have their adjustment screws located above where the optic is held so that your hands never have to cross into the beam path area.
Compact Geometry
Top adjust mirror mounts feature a slimmer profile and smaller footprint than traditional mounts. As such, they can often fit more easily into tight or restricted spaces when traditional mounts may not. Top adjust mirror mounts are ideal for use in laser cavities, OEM, and industrial applications due to their exceptionally slim profile and accessible actuators.
Locking Allen-Key Adjusters
Left: Lever lock. Right: Flexure lock built into the mount body.
All of Newport's industrial top adjust mounts have locking Allen-Key adjustments to save space and prevent unintended adjustment. Among them, all aluminum mounts have a flexure lock built into the mount body, and stainless steel mounts feature a lever lock. Both types of locks exert a tangential force on the screw to prevent rotation. Adjustment and locking actions are accomplished using a single tool from the same side of the mount.
Alignment Pin Holes
These mounts feature alignment pin holes (illustrated in red) on the bottom (base) of the mount to enable keying of the position and orientation by means of dowel pins for repeatable system integration and to prevent clocking effects. (Note: Dowel pins not included with mount.) This is especially helpful in OEM applications.
Specifications
-
Material
Anodized Aluminum
-
Allen-Key, locking
-
Optical Axis Height
20 mm
-
Optic Thickness
4.0 - 9.53 mm
-
Weight
37.9 g
-
Material
Anodized Aluminum
-
Allen-Key, locking
-
Optical Axis Height
20 mm
-
Optic Thickness
4.0 - 9.53 mm
-
Weight
37.9 g
