HPF1400 Fluorescence Optical Filter Set

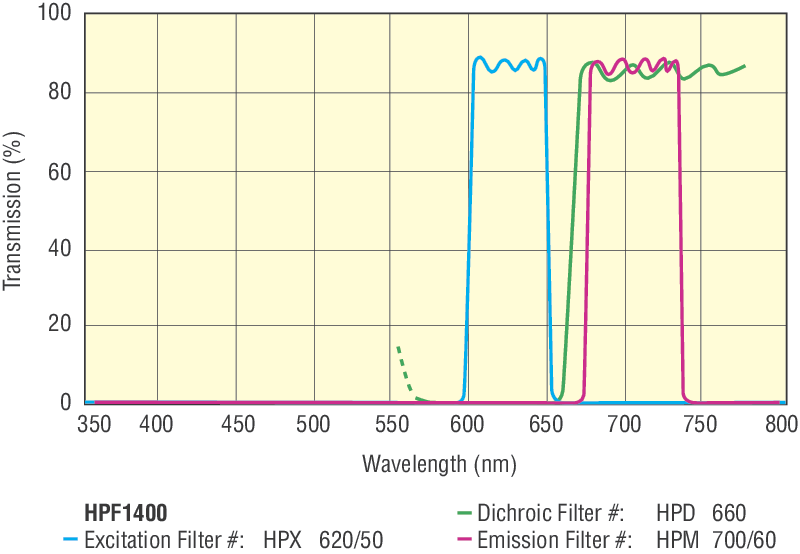

The HPF1400 HPF™ filter set includes HPX620-50

Excitation Filter, HPD660

Model: HPD660

Longpass Dichroic Filter, Fluorescence, 25.5 x 36 mm, 673-740 nm Trans.

$195.00

In Stock

See Full Product Details

Dichroic Filter, and HPM700-60

Emission Filter. It is ideal to use with Alexa Fluor 647 fluorophores. HPF™ filters are manufactured using our patented Stabilife^® coating technology which provides excellent spectral performance, spectral stability, and physical durability. These filter sets are designed to provide maximum performance using several key features including:

Exceptionally high passband transmission
Maximized out-of-band blocking including extended range blocking on excitation filters
Extremely steep slopes from rejection to transmission regions
Optical finishing for maximum image rendition including precision grinding and polishing and anti-reflection coatings
Filter bandpass specifications of center wavelength and bandwidth providing maximum image brightness and minimum background.

These product designs have served as the starting point for custom designed filters for market leading instruments including DNA Sequencers, Cytometers, MicroPlate Readers, In vivo Imagers, and Thermocyclers.

Specifications

Technical Specs

Fluorophores

Alexa Fluor 647

Fluorophores

Alexa Fluor 647

Resources & Downloads

Other

HPF1400 RoHS Certificate (263.5 kB, PDF)

Literature

Fluorescence Filters Brochure (2.1 MB, PDF)

Related Products

Fluorescence Filter Set Components

The following fluorescence filters are included with this set.

Description	Compatibility	Avail.	Price
HPX620-50 Bandpass Filter, Fluorescence, 25.0 mm, 620 nm Center, 50 nm Bandwidth	UNIVERSAL	In Stock	$150.00
HPD660 Longpass Dichroic Filter, Fluorescence, 25.5 x 36 mm, 673-740 nm Trans.	UNIVERSAL	In Stock	$195.00
HPM700-60 Bandpass Filter, Fluorescence, 25.0 mm, 700 nm Center, 60 nm Bandwidth	UNIVERSAL	In Stock	$195.00

Fluorescence Optical Filter Set, Alexa Fluor 647
