Multimode Fiber, Graded Index, 850/1300 nm, 0.20 NA, 50 µm Core.

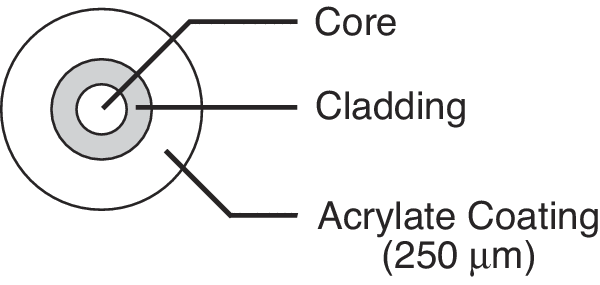

The F-MSD (Mfg. P/N: BF04430-01) graded-index multi-mode fiber optic cable is optimized for transmission at 850 and 1300 nm. It has a 50 μm core and 125 μm cladding diameter, a 0.200 NA, and features large bandwidth and low attenuation. This fiber has a 245 μm acrylate buffer coating allowing for continuous operation in the -65°C to +135°C temperature range.

This bare fiber does not include a protective fiber jacket. Standard pricing is per meter. The following volume discount schedule is applied when ordering continuous lengths of optical fiber: 10 - 49 m: 15%, 50 - 99 m: 22%, 100 - 499 m: 25%, and ≥ 500 m: 28%.
