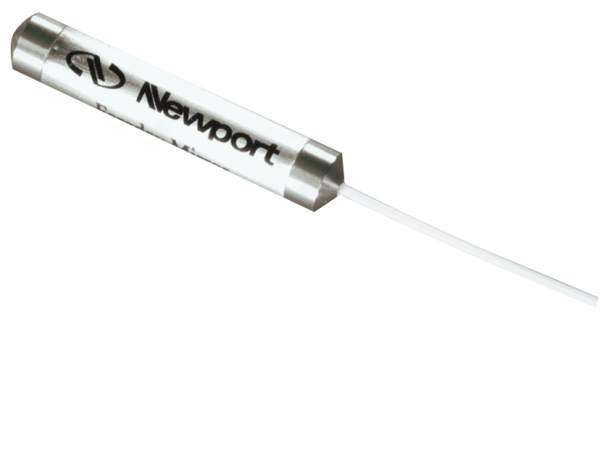

Faraday Rotator Mirror, 1310 nm, SMF-28 Pigtail, FC/APC Connector.
Faraday Rotator Mirror, 1310 nm, SMF-28 Pigtail, FC/APC Connector.
Model: F-FRM-1-JK-FA
Product Series Overview

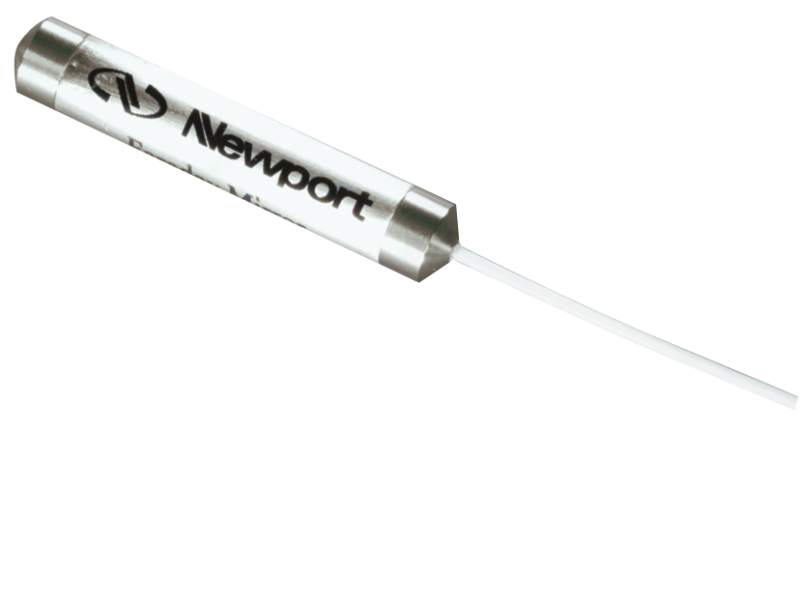

Fiber Optic Faraday Rotator MirrorsThe F-FRM-1-JK-FA Fiber Optic Faraday Rotator Mirror is a polarization rotation mirror designed for fiber optic networks and measurement applications. Upon reflection, the state of polarization (SOP) rotates 90 ° from that of the input light. A unique property of the F-FRM Series is that at any point along the fiber, the SOPs of the forward and backward optical waves are always orthogonal to each other, regardless of the birefringence of the fiber. When used properly, the Fiber Optic Faraday Rotator Mirror can help eliminate polarization sensitivity in optical fiber systems. Applications include eliminating polarization-induced fluctuations in fiber based interferometers, fiber laser systems, Brillouin amplifier systems, and remote fiber optic antenna systems.
The epoxy-free optical path offers low insertion loss, low polarization dependent loss (PDL) and high temperature stability. This device is ideal for polarization control in fiber laser systems, fiber sensors and fiber interferometers, as well as for polarization sensitivity elimination in bulk diffraction grating systems. This 1310 nm SMF-28 pigtailed version has approximately 1 m long fiber pigtails with 900 μm loose tube and FC/APC connectors.
The epoxy-free optical path offers low insertion loss, low polarization dependent loss (PDL) and high temperature stability. This device is ideal for polarization control in fiber laser systems, fiber sensors and fiber interferometers, as well as for polarization sensitivity elimination in bulk diffraction grating systems. This 1310 nm SMF-28 pigtailed version has approximately 1 m long fiber pigtails with 900 μm loose tube and FC/APC connectors.
Pigtailed Versions Available
The pigtailed versions come with ~1 m long fiber pigtails with 900-µm loose tube. These devices are more economical and provide the user with added fiber length in a fiber optic system. They are available with FC/PC or FC/APC connectors, or no connectors.
Orthogonal Back Reflection
Upon reflection, the state of polarization (SOP) rotates 90° from that of the input light. A unique property of the F-FRM Series is that at any point along the fiber, the SOPs of the forward and backward optical waves are always orthogonal to each other, regardless of the birefringence of the fiber.
Epoxy-Free Optical Path
The epoxy-free optical path offers low insertion loss, low polarization dependent loss (PDL) and high temperature stability.
Applications
When used properly, the Fiber Optic Faraday Rotator Mirrors can help eliminate polarization sensitivity in optical fiber systems. Applications include:
- Eliminating and controlling polarization-induced fluctuations in fiber based interferometers, fiber sensors, fiber laser systems, Brillouin amplifier systems and remote fiber optic antenna systems
- Polarization sensitivity elimination in bulk diffraction grating systems
Resources & Downloads
Other
F-FRM-1-JK-FA RoHS Certificate(264.6 kB, PDF)
2D Product Drawings
F-FRM DWG.pdf(99.5 kB, PDF)
