Air Compressor, Low Noise, 3.5 Liter Capacity, 220 VAC
Model: ACGP-02
Product Series Overview

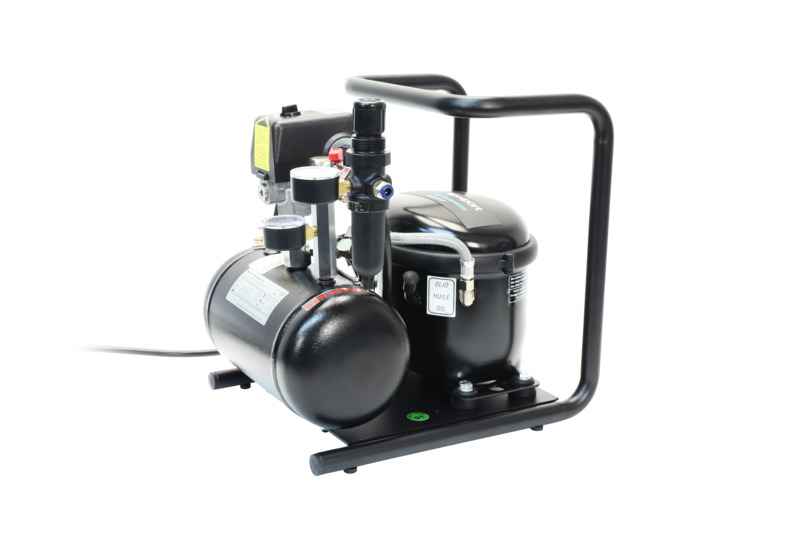

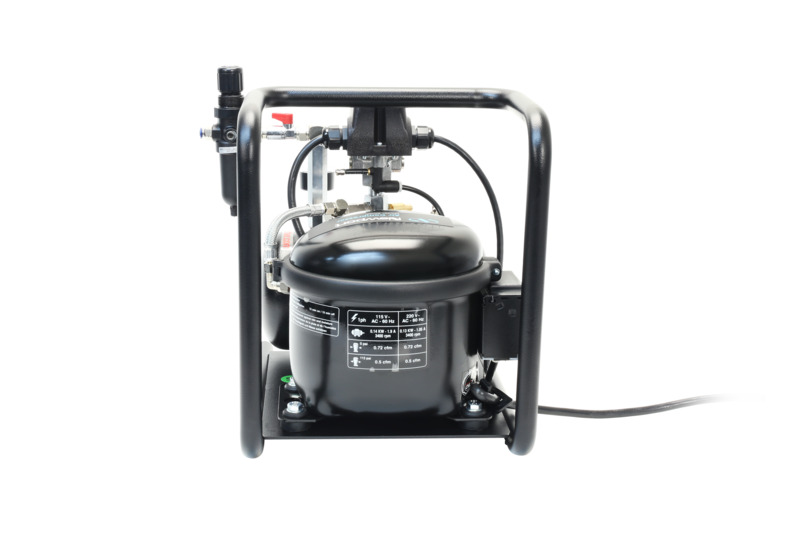

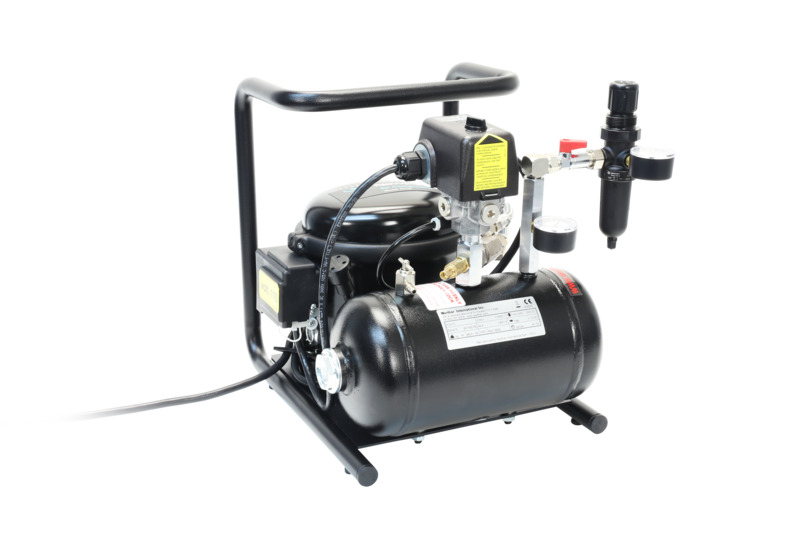

Air CompressorsThe ACGP-02 Silent Air Compressor is clean, ultra quiet (30 dB(A) at 1 ft.), portable, and more convenient than bottled air supplies. The fast filling and economical ACGP can supply air to any Newport pneumatic isolator, optical table system or workstation. The compressor operates intermittently based on air usage
Powerful and Quiet Solution for Your Pneumatic System
Our ACGP Silent Air Compressor is clean, ultra quiet, portable, and more convenient than bottled air supplies. It offers a 3.5 liter tank capacity that is large enough to run multiple workstations. The fast filling and economical ACWS can supply air to any workstation or OTS system. Our compressors operates intermittently based on air usage; monitored by a sensor that maintains the reserve tank’s preset minimum pressure. All required hardware including a safety valve, gauges, outlet cocks, fittings and drain comes standard. Even a high-grade air filter/regulator is included. There’s nothing more to purchase.
ACGP Series Air Compressor FAQ
Specifications
- TypeAir Compressor
- Width13.5 in.
- Length11 in.
- Height13 in.
- Weight17 kg
- Flow Rate at 20-80 psi0.68 CFM
- Maximum Air Pressure116 psi
- Tank Capacity3.5 liters
- Operating Sound Level at 1 ft.30 dB
- Release Valve Sound Level62 dB
- Power Requirements220 VAC
Resources & Downloads
Other
ACGP-02 RoHS Certificate(278.6 kB, PDF) CE_P15TC230 (ACGP-02)(205.1 kB, PDF)
Manuals
ACGP Air Compressor User Manual(303.2 kB, PDF) ACGP Air Compressor User Manual(303.2 kB, PDF)
