Convertible Clear Edge Mirror Mount, 1.0 in., 3 Knob Adjustment

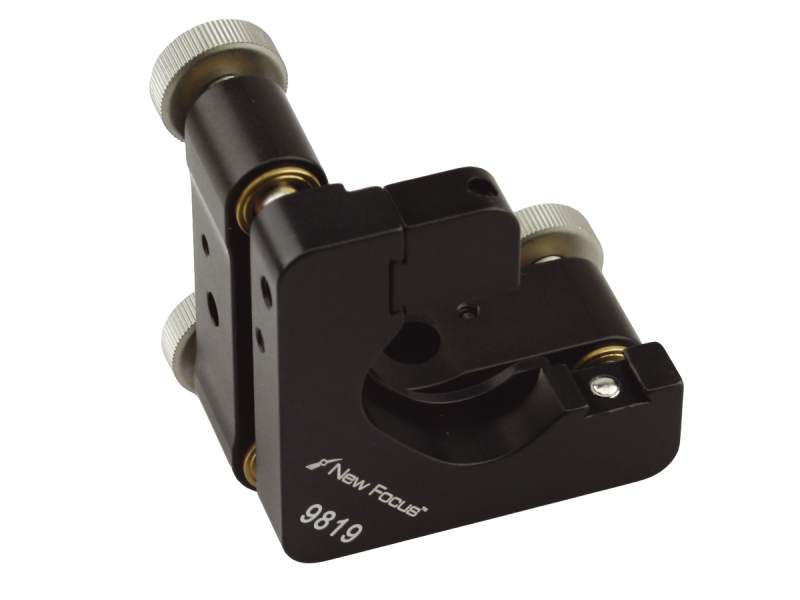

The 9819 Convertible Clear-Edge mount is really two mounts in one. It can be easily converted from a right-handed to a left-handed clear-edge mount with a simple screw adjustment. This cost-saving mount is also exceptionally stable. The combination of our proprietary precision matched 1/4-80 screws, sapphire seats, and extra thick frames gives you stability and precise adjustment for the most demanding applications.
Specifications
Type
Standard
Mechanism
Kinematic
Optic Diameter
25.4 mm
Number of Actuators
3
Actuator Drive
Knob
Actuator Locks
No
Adjustment Screw Thread
80 TPI
z, θx, θy
4.4 arc sec
Angular Range
±4 °
Actuator Orientation
Left-handed
Material
Aluminum
Knob, non-locking
Thread Type
8-32 (M4) CLR
Optic Mounting
Set Screw
Weight
121 g
