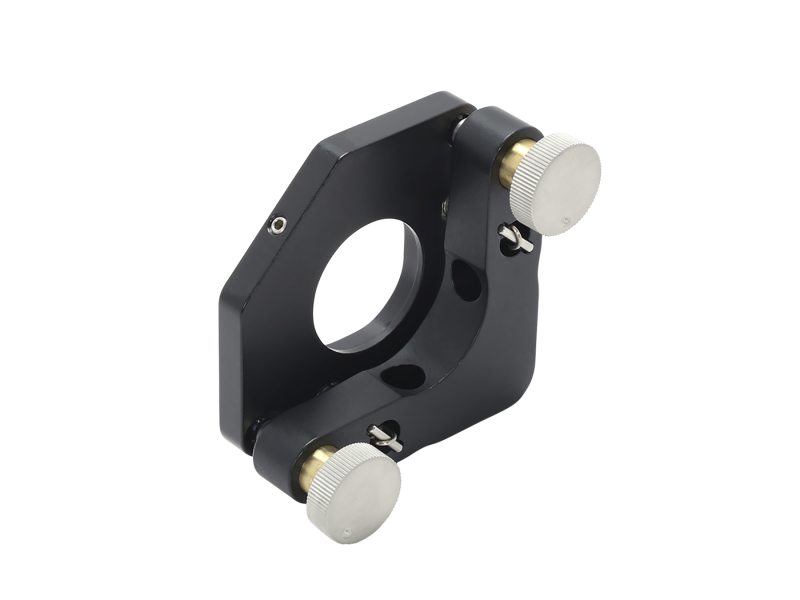

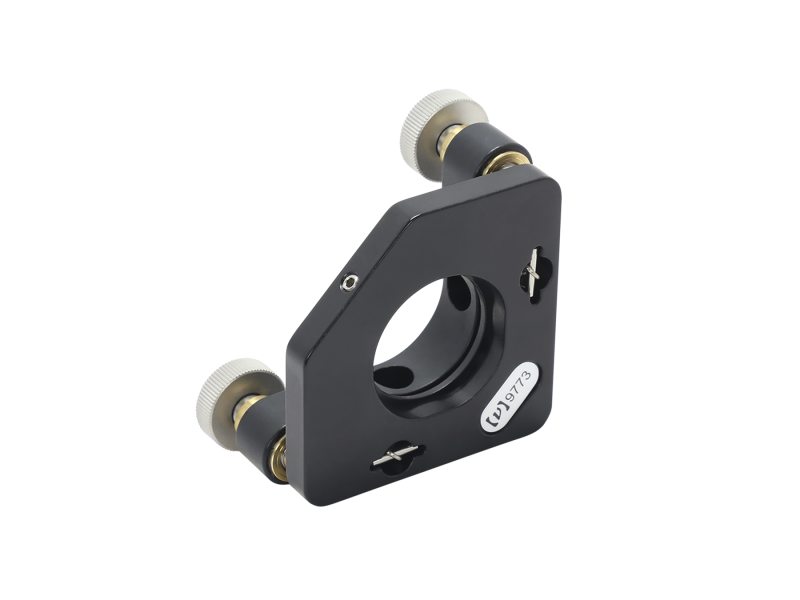

9773 Mirror Mount

Mirror Mount, Valu, Center, 1.0 in., 2 Knobs

Model: 9773

$105

In Stock

Compare

Add to List

Product Series Overview

New Focus Mirror Mounts

The 9773 Valu Center Mirror Mount achieves a high level of stability by using a 0.5 inch frame that is stiffer than any you'll find on other comparably priced 1.0 in. (25.4 mm) diameter mounts. Two knob adjustment screws give you ±4° for tip and tilt adjustments using the same high-quality proprietary screws, brass nuts, and hard sapphire seats found in all New Focus® mounts.

Specifications

Technical Specs

Mechanism

Kinematic
Optic Diameter

25.4 mm
Number of Actuators

2
Actuator Locks

No
Adjustment Screw Thread

80 TPI
Adjustments

θx, θy
Sensitivity

4.4 arc sec

Angular Range

±4°
Optic Loading

Front
Material

Anodized Aluminum
Drive Type

Knob, non-locking
Thread Type

8-32 (M4) CLR
Optical Axis Height

25.4 mm

Mechanism

Kinematic
Optic Diameter

25.4 mm
Number of Actuators

2
Actuator Locks

No
Adjustment Screw Thread

80 TPI
Adjustments

θx, θy
Sensitivity

4.4 arc sec

Angular Range

±4°
Optic Loading

Front
Material

Anodized Aluminum
Drive Type

Knob, non-locking
Thread Type

8-32 (M4) CLR
Optical Axis Height

25.4 mm

Resources & Downloads

2D / 3D CAD Software

Download CAD Files

Drawings And Cad

9773c-Drawing (96.4 kB, PDF)
