Optical Post Lab Jack, 3 mm Travel, 4.4 N Load, 8-32 Thread

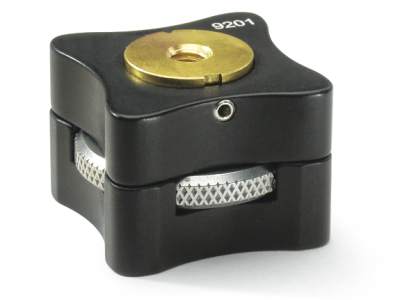

The 9201 Tiny Lab Jack simplifies the alignment of small-area detectors. It gives you 1/8 in. of travel with 0.001 in. resolution. Threaded 8-32 holes on the top and bottom let you mount it directly to a post or pedestal. A single setscrew locks the jack solidly.

Specifications

Technical Specs

Travel Range
3 mm
Load Capacity
4.4 N
Thread Type
8-32
Minimum Height
17.5 mm
Maximum Height
20.5 mm

Axes of Travel
Z
Resolution
0.03 mm

Travel Range
3 mm
Load Capacity
4.4 N
Thread Type
8-32
Minimum Height
17.5 mm
Maximum Height
20.5 mm

Axes of Travel
Z
Resolution
0.03 mm
