XY Linear Stage, Gothic-Arch, 65x65 mm, Micro X, Pico Y, 8-32, 1/4-20

1.0 in. Travel Gothic-Arch Bearing Piezo Linear Stages

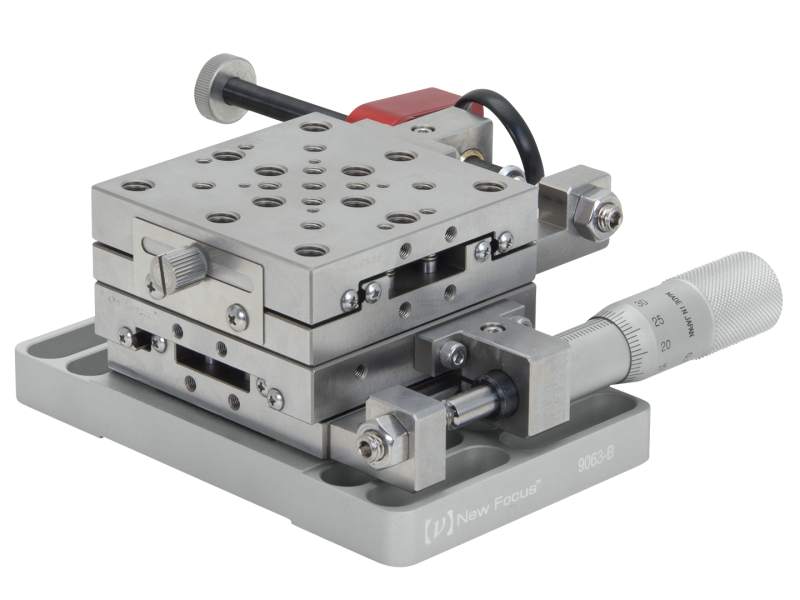

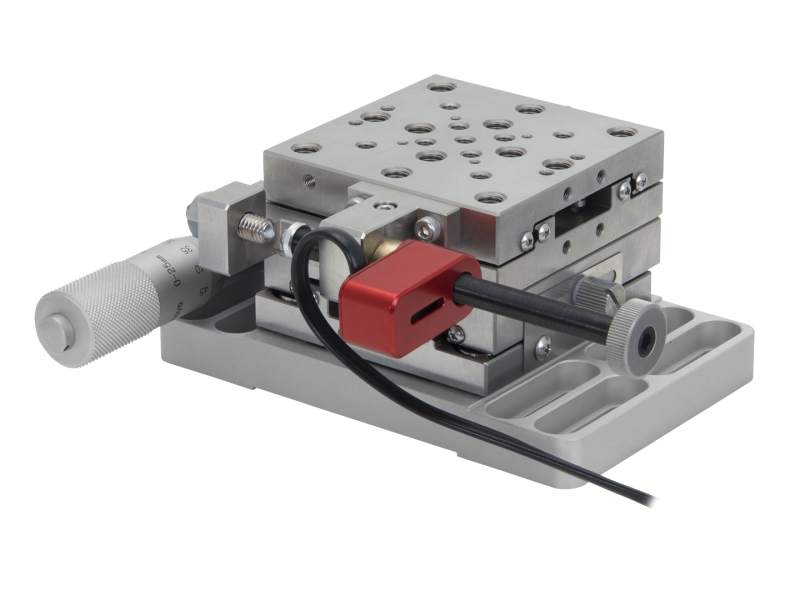

The 9063-XY-NP Motorized Gothic-Arch Bearing Stage incorporates our Picomotor™ actuators with our 65 x 65 mm platform gothic-arch-bearing translation stages to achieve the ultimate in stability and rigidity along with remote-control operation. A Picomotor actuator controls the Y axis, while the X axis is micrometer controlled. All necessary clamps, brackets, and base plates are included so that the stage can be used right out of the box. These stages offer stainless-steel construction, thumbscrew locks, and 1 inch (25.4 mm) travel range. Gothic-arch bearings offer the smooth motion of ball bearings but high stiffness and repeatability. The unique gothic profile provides four points of contact (rather than two) so that the load and momentum are more evenly distributed. Side-mounted micrometer clamps minimize the overall footprint. 8-32 and 1/4-20 threads

Specifications

Technical Specs

Travel Range
25.4 mm
Axes of Travel
XY
Motorized Axes
Y
Micrometer Axes
X
Included Actuators
Picomotor:
Micrometer:
Maximum Speed
0.02 mm/s
Minimum Incremental Motion
<30 nm (Picomotor)
Resolution
0.5 µm (Micrometer)
Centered Load Capacity
173 N
Vertical Load Capacity
35 N

Bearings
Gothic Arch Bearings
Material
Stainless Steel
Feedback
Open Loop
Cable Length
2.1 m
Connector Type
4-Pin
Thread Type
8-32 and 1/4-20
Platform Size
65 x 65 mm
Operating Temperature
10 to 40°C

Travel Range
25.4 mm
Axes of Travel
XY
Motorized Axes
Y
Micrometer Axes
X
Included Actuators
Picomotor:
Micrometer:
Maximum Speed
0.02 mm/s
Minimum Incremental Motion
<30 nm (Picomotor)
Resolution
0.5 µm (Micrometer)
Centered Load Capacity
173 N
Vertical Load Capacity
35 N

Bearings
Gothic Arch Bearings
Material
Stainless Steel
Feedback
Open Loop
Cable Length
2.1 m
Connector Type
4-Pin
Thread Type
8-32 and 1/4-20
Platform Size
65 x 65 mm
Operating Temperature
10 to 40°C

Resources & Downloads

2D Product Drawings

9063-XY (M) - Drawing(100.9 kB, PDF)

Literature

Picomotor FAQ(3.1 MB, PDF)
